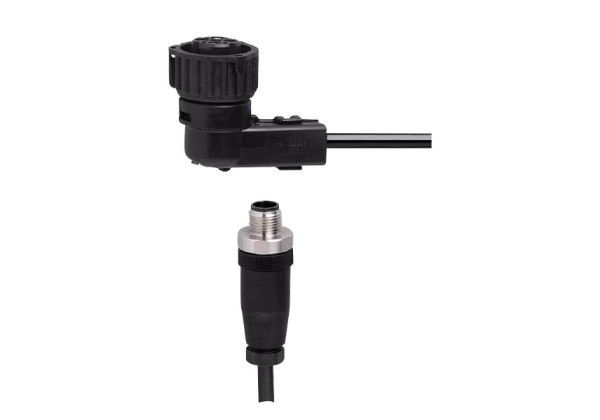

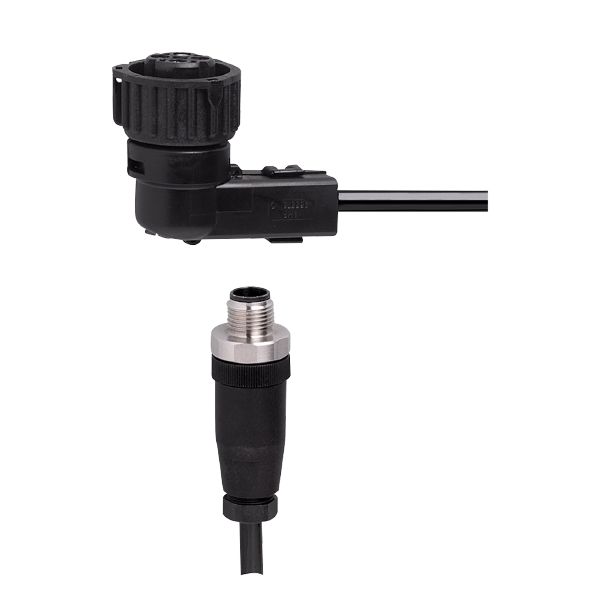

E11274 - ecomat400-VDOAR040PLS0002HSTGH040VAS
Brand: IFM Electronic
Code: E11274
- For the connection of sensors with bayonet connector
- For communication with programming devices
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Halogen-free |
|---|---|
| Design | for communication with the programming unit PP2000 |
Electrical data
| Operating voltage [V] | 9.6...30 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67; (Connecting cable with socket: IP 67 / IP 69K) |
Mechanical data
| Weight [g] | 131 |
|---|---|
| Moulded-body material | PA / Hytrel G-4774 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PUR, Halogen-free, black, Ø 6 mm; 4 x 0.5 mm² |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA |
|---|
Electrical connection - socket
| Connector: 1 x bayonet, angled; Moulded body: Hytrel G-4774 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11274-00 — 05.11.2020 —
