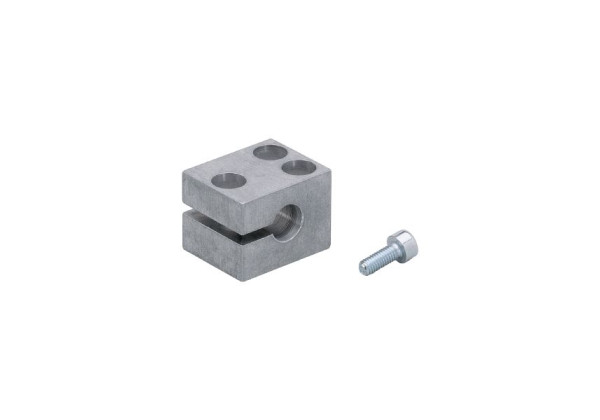

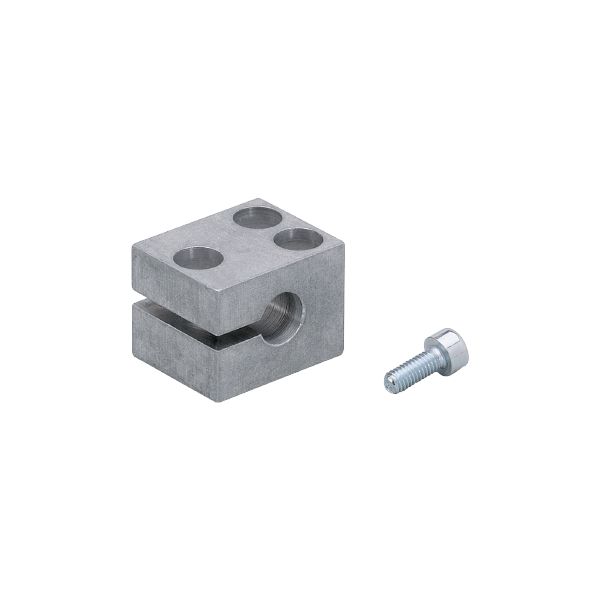

E11294 - efector100-MOUNTING CLAMP D6,5MM
Brand: IFM Electronic
Code: E11294
- For mounting cylindrical sensors
- Easy, quick and inexpensive fixing
- Reliable fixture by clamping with just one screw
Application
| Design | for type Ø 6,5 mm |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|
Mechanical data
| Weight [g] | 11.7 |
|---|---|
| Dimensions [mm] | 15 x 20 x 16 |
| Inside diameter [mm] | 6.5 |
| Materials | aluminium alloy |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11294-00 — 04.03.2004 —
