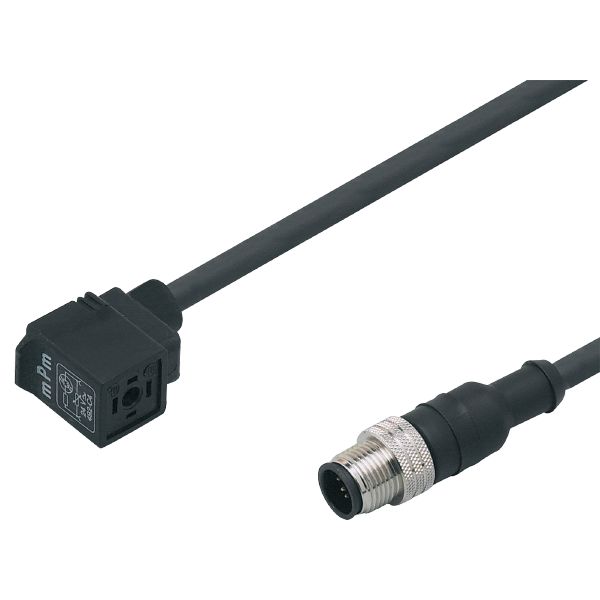

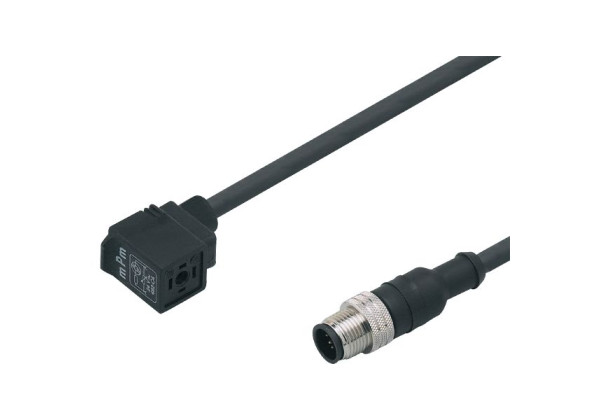

E11427 - ecomat400-VVDAC031MSS00,6H03STGH030MSS
Brand: IFM Electronic
Code: E11427
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Clearly visible LED
- With integrated protective circuitry
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 24 AC/DC |
|---|---|
| Overvoltage protection | yes; (VDR) |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 59.2 |
|---|---|
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
Electrical connection
| Connection | Cable: 0.6 m, PUR, Halogen-free, black, Ø 5 mm; 3 x 0.5 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector: 1 x valve type C DIN, angled; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: nickel-plated brass; Tightening torque: 0.7...0.9 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11427-00 — 06.11.2017 —
