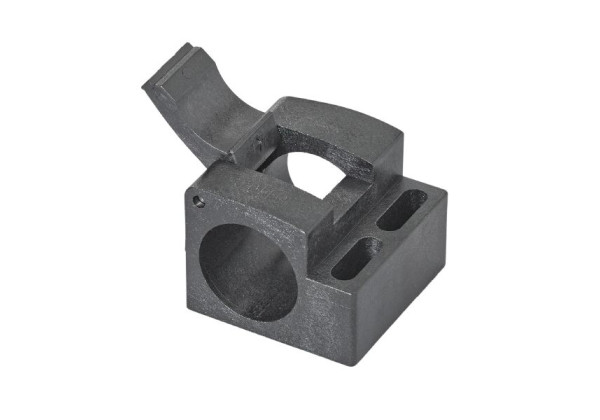

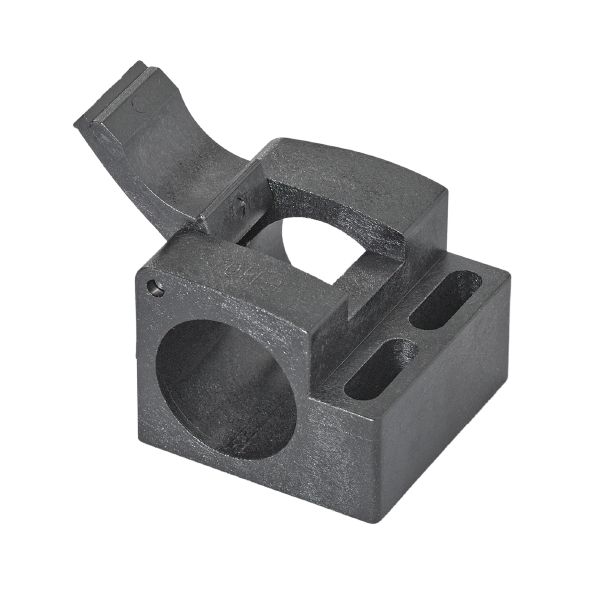

E11521 - efector100-MOUNTING CLAMP M8
Brand: IFM Electronic
Code: E11521
- End stop for defined installation position
- Safe fixing of the sensor with click-fit mounting
- For mounting cylindrical sensors
- Easy, quick and inexpensive fixing
- Reliable mounting on a surface by means of two screws
Application
| Design | with end stop |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|
Mechanical data
| Weight [g] | 4.3 |
|---|---|
| Dimensions [mm] | 15 x 20 x 22 |
| Inside diameter [mm] | 8 |
| Materials | PC |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11521-00 — 06.03.2003 —
