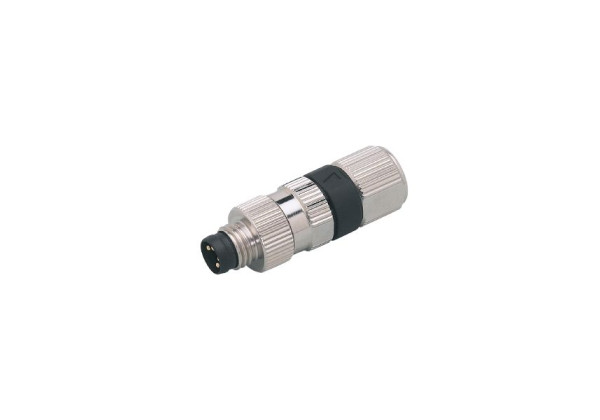

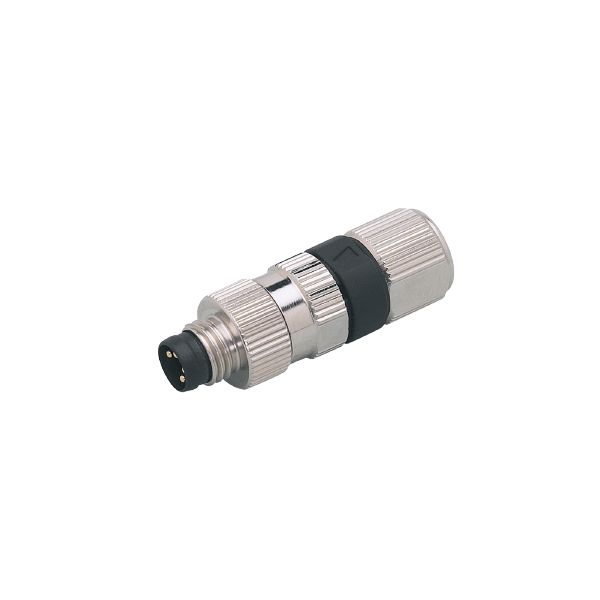

E11551 - ecomat400-SSTGF040MSSFPG
Brand: IFM Electronic
Code: E11551
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Easy cable connection via insulation displacement technology
- Robust metal version
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 60 AC / < 75 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 14.9 |
|---|---|
| Dimensions [mm] | 12 x 12 x 35.5 |
| Materials | PA |
| Moulded-body material | PA |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| insulation displacement technology: 0.14...0.38 mm²; Core insulation: PVC / TPE; (Ø 1.0...1.6 mm); Cable sheath: Ø 3...5 mm |
Electrical connection - plug
| Connection | Connector: 1 x M8, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11551-00 — 01.09.2008 —
