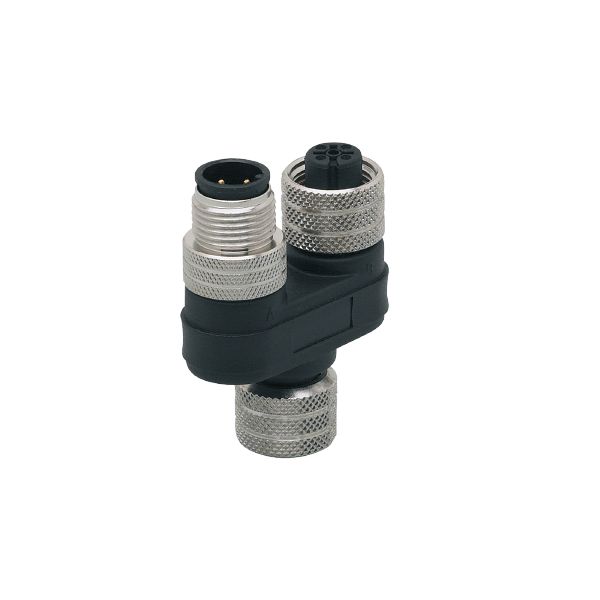

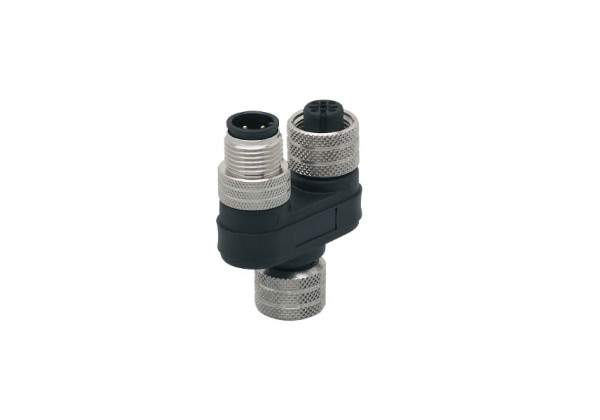

E11569 - efector100-Safety splitter box
Brand: IFM Electronic
Code: E11569
- For the pseudo-serial connection of fail-safe switches
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Design | T-piece for the pseudo-serial connection of fail-safe sensors |
|---|
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load per module/slot [A] | 4 |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 31.4 |
|---|---|
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11569-01 — 18.12.2013 —
