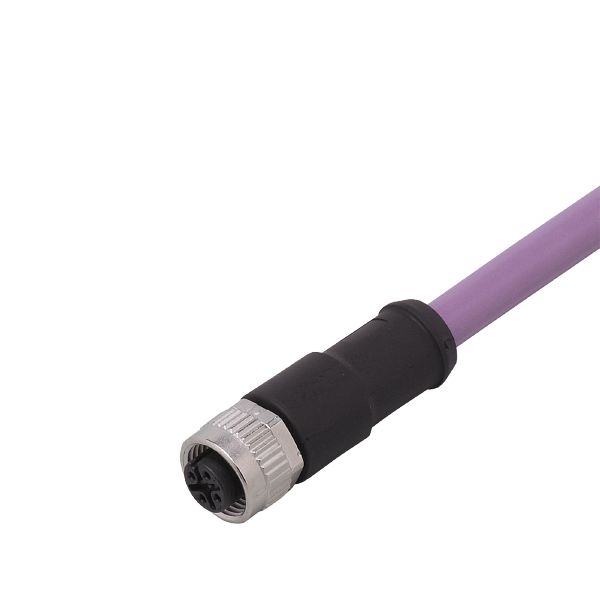

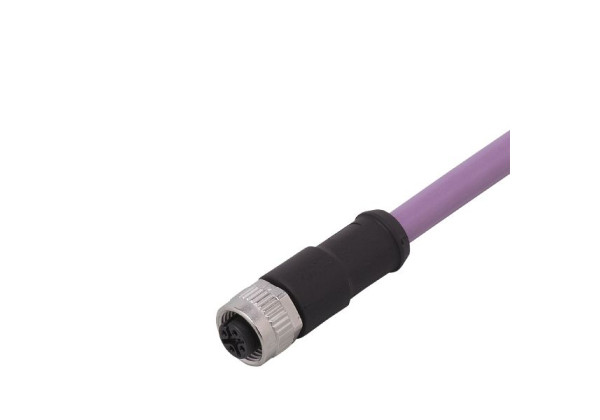

E11596 - ecomat400-ADOGH050MSA0002C02

Code: E11596

Reliable connection technology for CAN bus participants
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Gold-plated contacts for reliable electrical connections

Application

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Application	CAN bus

Electrical data

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-20...80
Storage temperature [°C]	-40...80
Protection	IP 68

Mechanical data

Weight [g]

163

Dimensions [mm]

14.5 x 14.5 x 43.9

Materials

PUR

Moulded-body material

PUR

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
bending radius for fixed installation	min. 5 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 1 Mio.

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, lilac, Ø 6.8 mm, shielded; RD / BK: 2 x 0.25 mm² (19 x Ø 0.13 mm ) + WH / BU: 2 x 0.34 mm² (19 x Ø 0.16 mm ) + screen: 1 x 0.34 mm² (19 x Ø 0.16 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated
