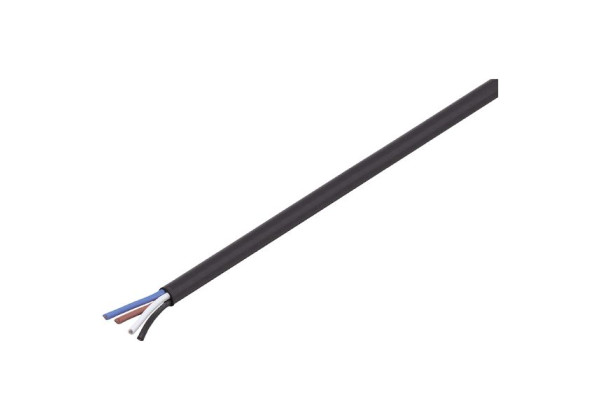

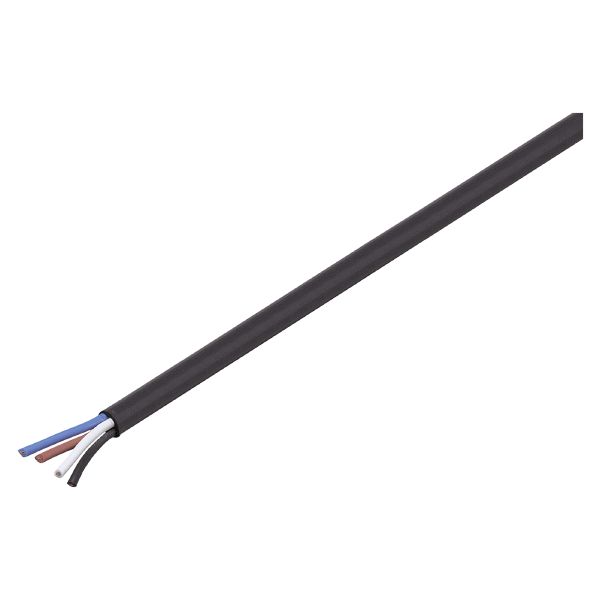

E11685 - ecomat400-CABLE/ 50M/ PUR/4X0,34/BK

Code: E11685

Application

Special feature	Halogen-free; Drag chain suitability

Operating conditions

Ambient temperature [°C]	-40...90

Mechanical data

Weight [g]

1612

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 50 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm², PP

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11685-00 — 15.07.2010 —
