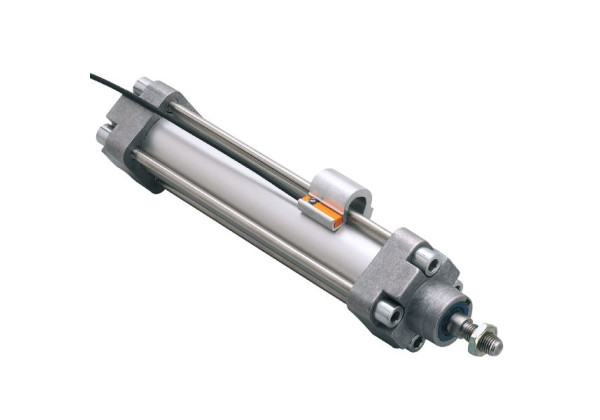

E11799 - efector100-ADAPT TIE ROD/PROFILE/CYL
Brand: IFM Electronic
Code: E11799

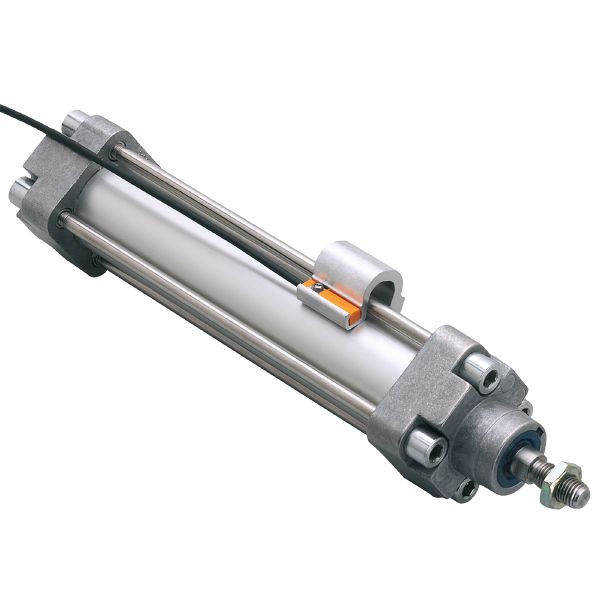

- For the adaptation of cylinder sensors to tie rod cylinders
- Robust metal design for use in harsh industrial environments
- Low height due to a perfectly adapted mechanical solution
- Protected position of the sensor in the adapter
- Easy, quick and secure mounting
Application
| Design | for types MKT |
|---|
Mechanical data
| Weight [g] | 21.4 |
|---|---|
| Dimensions [mm] | 25.9 x 25 x 34.2 |
| Materials | Adapter: aluminium; screw: stainless steel |
| Clamping range [mm] | 9...15 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11799-00 — 12.10.2004 —
