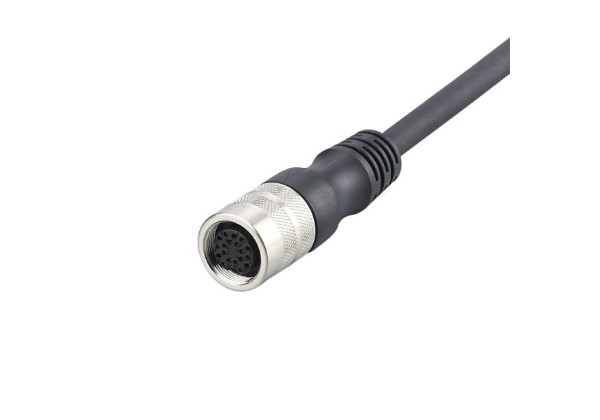

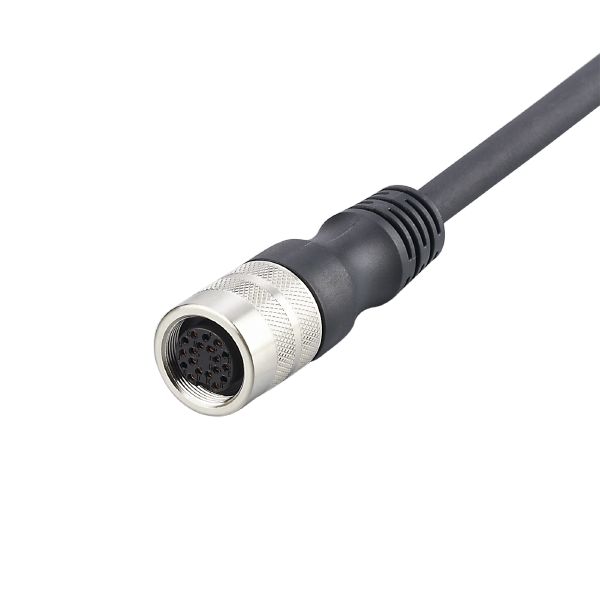

E11809 - ecomat400-ADOGO014MSS0010B11
Brand: IFM Electronic
Code: E11809
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | < 30 DC |
|---|---|
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 792.5 |
|---|---|
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PUR, black, Ø 7.5 mm; 2 x 0.34 mm² (14 x Ø 0.15 mm ) + 10 x 0.25 mm² (7 x Ø 0.2 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M16, straight; Moulded body: PUR; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11809-01 — 06.02.2023 —
