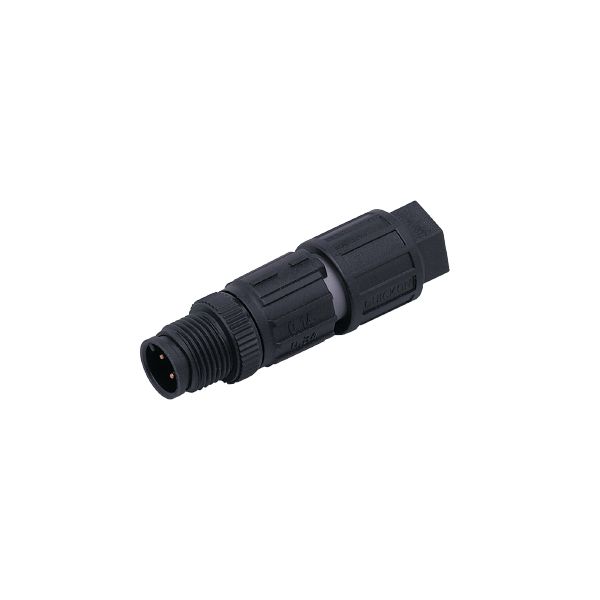

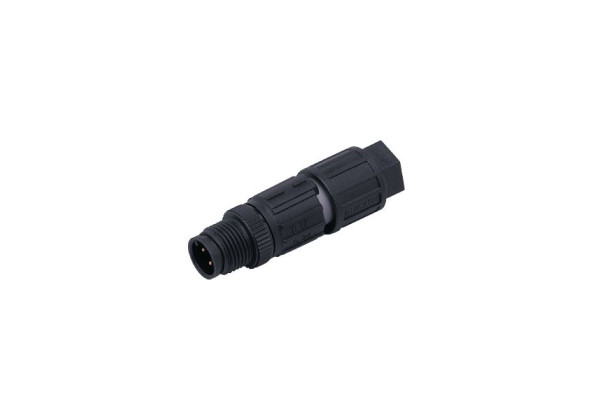

E11840 - ecomat400-SSTGH040MSSFKSK
Brand: IFM Electronic
Code: E11840
- For safe electrical connections
- High protection rating for the requirements of harsh industrial environments
- Easy cable connection via insulation displacement technology
Electrical data
| Operating voltage [V] | < 250 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 11.8 |
|---|---|
| Dimensions [mm] | 16 x 16 x 54 |
| Materials | PA 6.6 |
| Moulded-body material | PA 6.6 |
| Material nut | PA 6.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| insulation displacement technology: 0.14...0.34 mm²; Cable sheath: Ø 3.5...6 mm |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6; Locking: PA 6.6 |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11840-01 — 28.08.2008 —
