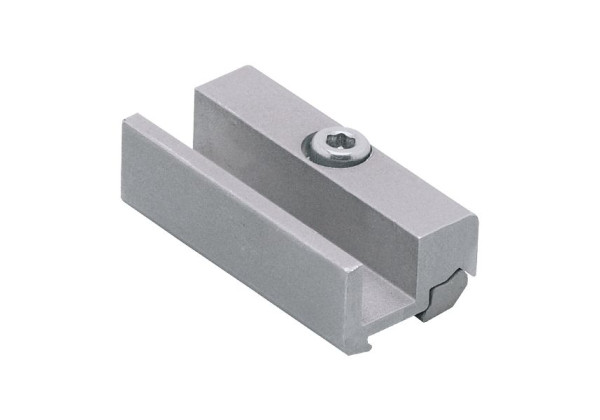

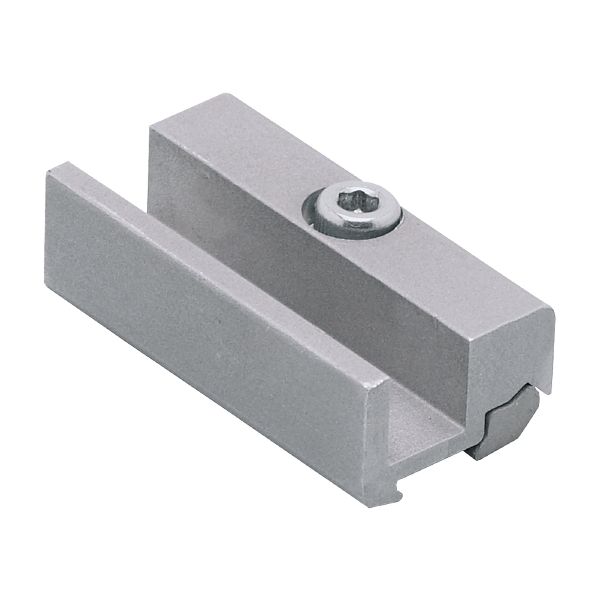

E11893 - efector100-ADAPT FOR CYL BOSCH 2700
Brand: IFM Electronic
Code: E11893
- For the adaptation of cylinder sensors to cylinders with manufacturer-specific slot
- Low height due to a perfectly adapted mechanical solution
- Protected position of the sensor in the adapter
- Easy, quick and secure mounting
- Robust metal design for use in harsh industrial environments
Application
| Design | for types MKT |
|---|
Mechanical data
| Weight [g] | 5.2 |
|---|---|
| Type of mounting | for series: Bosch 2700 |
| Dimensions [mm] | 13.3 x 25 x 8.2 |
| Materials | Adapter: aluminium; screw: stainless steel |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11893-00 — 23.02.2006 —
