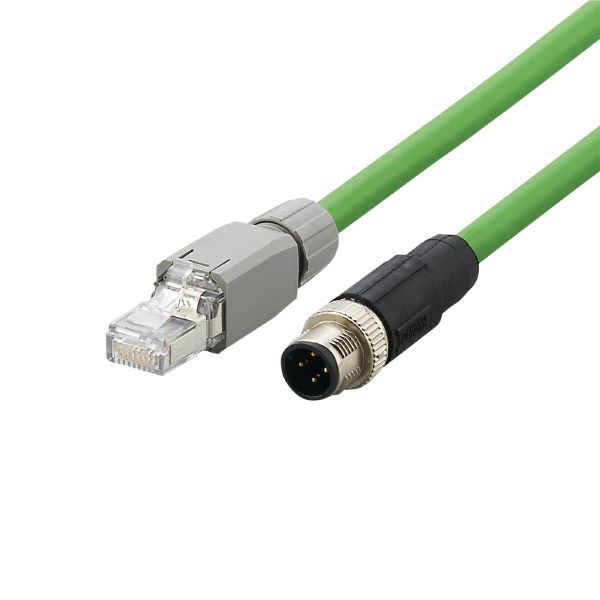

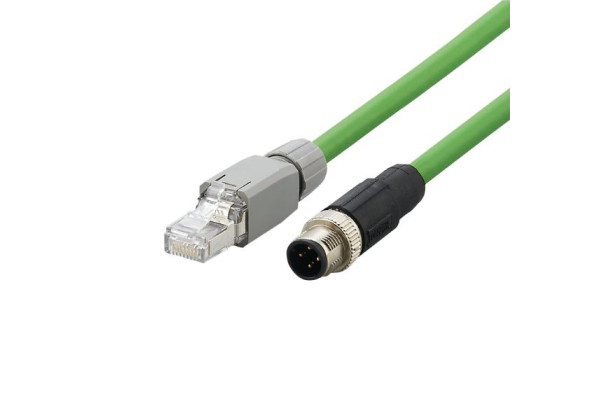

E11898 - ecomat400-VDOGH040MSS0002X04GXS
Brand: IFM Electronic
Code: E11898
- For connection to the parameter setting interface of the sensor
- For reliable signal transmission
Application
| Design | Ethernet cable, D-coded |
|---|---|
| Application | cross-over patch cable; patch cable |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67; IP 42; (M12 plug / RJ45 plug) |
Mechanical data
| Weight [g] | 163.5 |
|---|---|
| Materials | PUR / PC |
| Moulded-body material | PUR / PC |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug M12
| Connector: 1 x M12, straight; coding: D; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Tightening torque: 0.7...0.9 Nm |
Electrical connection
| Connection | Cable: 2 m, PVC, green, Ø 6.2 mm; 4 x 0.38 mm² |
|---|
Electrical connection - plug RJ45
| Connector: 1 x RJ45, straight; Moulded body: PC |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11898-00 — 05.11.2020 —
