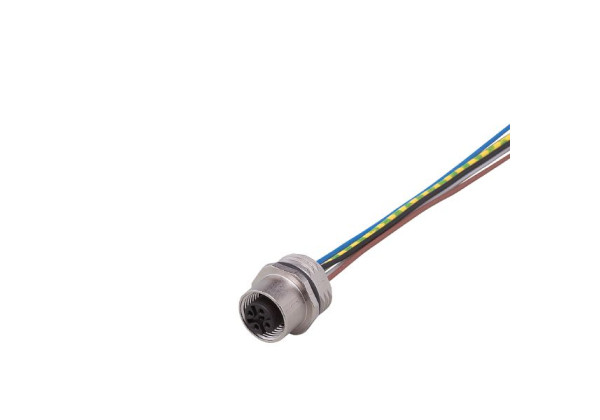

E11917 - ecomat400-EDOGH050MSS00,7E05(M16)
Brand: IFM Electronic
Code: E11917
- User-friendly equipment of distributors and housings with connections for connectors
- Easy and quick installation into the container wall
- Robust metal version
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | < 125 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 25.1 |
|---|---|
| Mounting thread | M16 |
| Materials | diecast zinc nickel-plated |
| Moulded-body material | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.7 m, PVC; 4 x 0.25 mm² + 1 x 0.5 mm² |
Electrical connection - socket
| Connection | Connector: 1 x M12; coding: A; Moulded body: diecast zinc, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11917-01 — 23.06.2010 —
