E11959 - efector100-CLAMP FOR CLEAN LINE CYL D20
Brand: IFM Electronic
Code: E11959

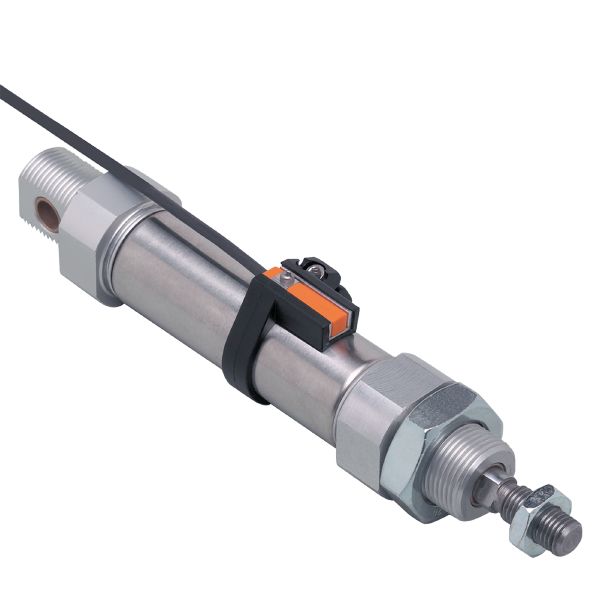

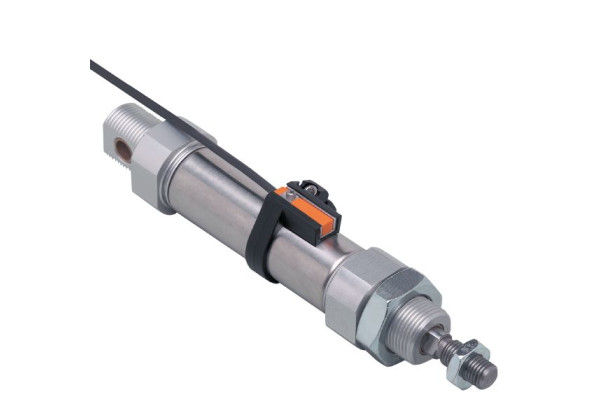

- For the adaptation of cylinder sensors to clean line cylinders
- Low height due to a perfectly adapted mechanical solution
- Protected position of the sensor in the adapter
- Easy, quick and secure mounting
Application
| Design | for types MKT |
|---|
Operating conditions
| Ambient temperature [°C] | 0...50 |
|---|
Mechanical data
| Weight [g] | 9.2 |
|---|---|
| Materials | mounting clamp: POM; fixture: aluminium; screw: stainless steel |
| Tightening torque [Nm] | 0.5; (Mounting screw) |
| Piston diameter [mm] | 20 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Installation | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11959-02 — 15.09.2010 —
