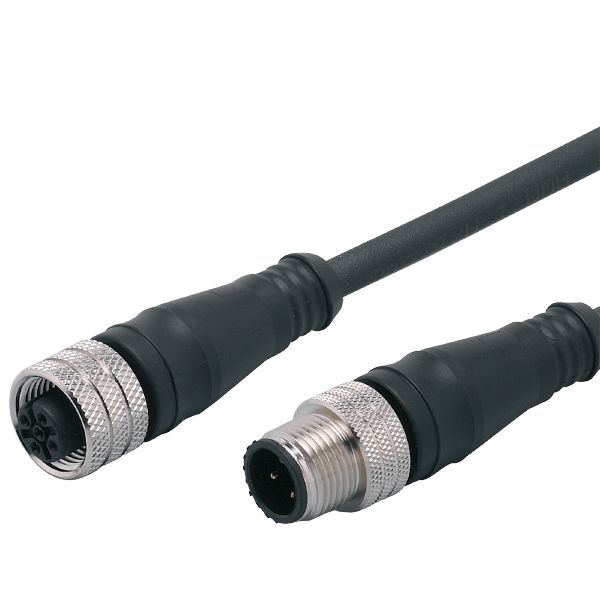

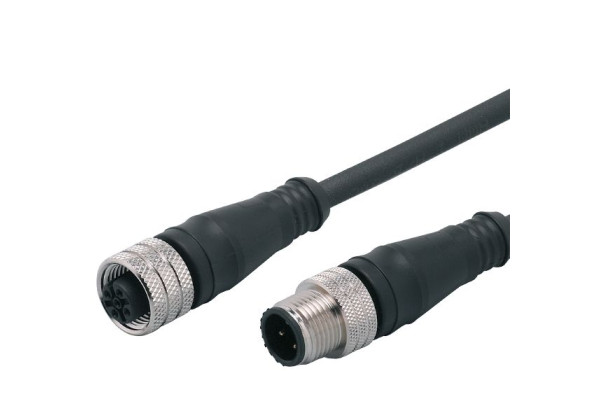

E11974 - ecomat400-cable Plus and Minus crossed
Brand: IFM Electronic
Code: E11974
- For changing the polarity of the supply voltage
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Design | for sensors programmable via wiring to change the polarity of the supply voltage on pin 1 and pin 3 |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 250 AC / < 300 DC |
|---|---|
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 39.7 |
|---|---|
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
Electrical connection
| Connection | Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.7 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11974-00 — 06.03.2007 —
