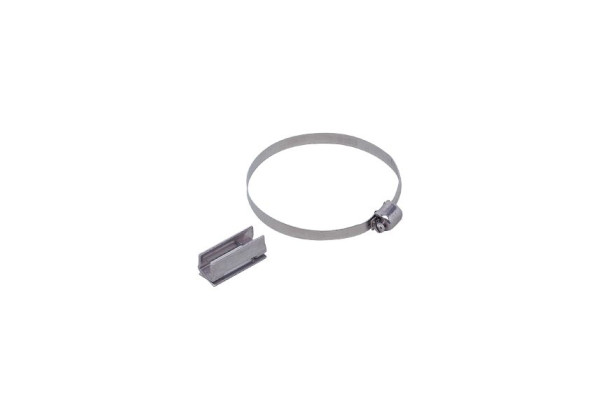

E11981 - efector100-FIXING STRAP CLEAN-LINE CYL
Brand: IFM Electronic
Code: E11981
- For the adaptation of cylinder sensors to clean line cylinders
- Low height due to a perfectly adapted mechanical solution
- Protected position of the sensor in the adapter
- Easy, quick and secure mounting
Application
| Design | for types MKT |
|---|
Mechanical data
| Weight [g] | 18.7 |
|---|---|
| Dimensions [mm] | Ø 80 |
| Materials | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) |
| Piston diameter [mm] | 80 |
| Clamping range [mm] | 78...89 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11981-00 — 07.09.2009 —
