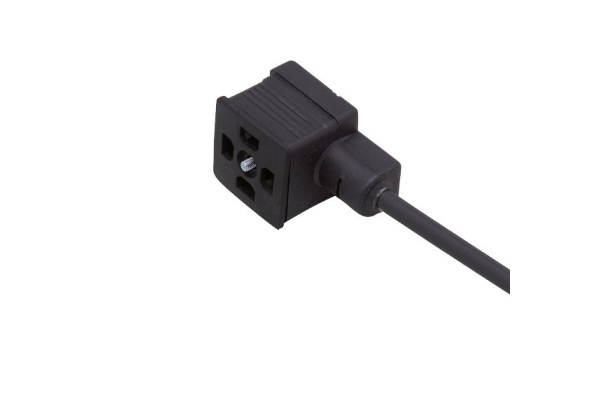

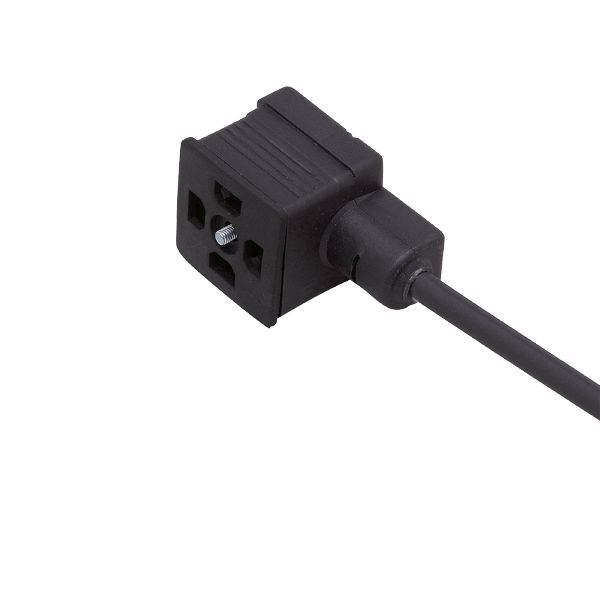

E11991 - ecomat400-AVDAA031PLS0010H03
Brand: IFM Electronic
Code: E11991
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Clearly visible LED
- Robust rectangular connector
Application
| Special feature | Free from silicone; Halogen-free |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 24 AC/DC |
|---|---|
| Overvoltage protection | yes; (VDR) |
| Max. current load total [A] | 5 |
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 491.5 |
|---|---|
| Dimensions [mm] | 28.5 x 29.5 x 47 |
| Materials | PP; FKM |
| Moulded-body material | PP / FPM |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PUR, Halogen-free, Ø 6.6 mm; 3 x 0.5 mm² / AWG 20 |
Electrical connection - socket
| Connection | Connector: 1 x valve type A DIN, angled; Moulded body: PP / FPM |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11991-00 — 06.11.2017 —
