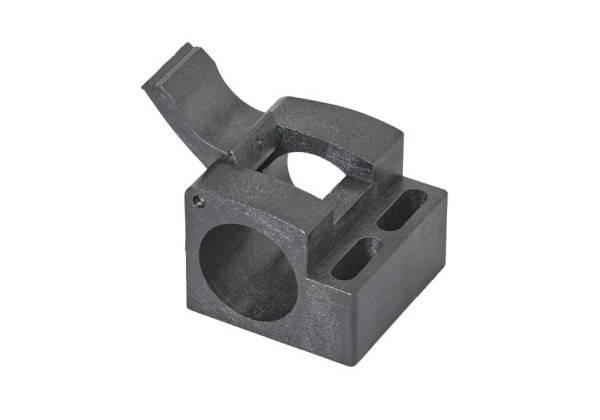

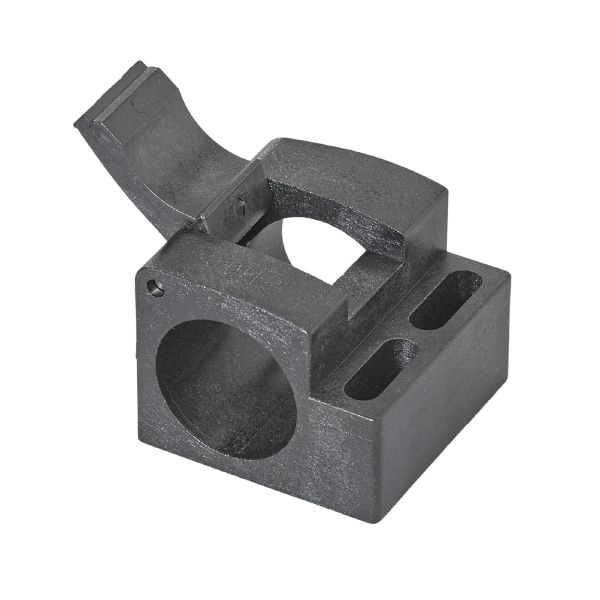

E11996 - efector100-MOUNTING CLAMP M30
Brand: IFM Electronic
Code: E11996
- End stop for defined installation position
- Safe fixing of the sensor with click-fit mounting
- For mounting cylindrical sensors
- Easy, quick and inexpensive fixing
- Reliable mounting on a surface by means of two screws
Application
| Design | with end stop |
|---|---|
| Installation | for sensors with 45° chamfer |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|
Mechanical data
| Weight [g] | 24 |
|---|---|
| Dimensions [mm] | 35 x 35 x 41 |
| Inside diameter [mm] | 30 |
| Materials | PC |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11996-00 — 25.09.2013 —
