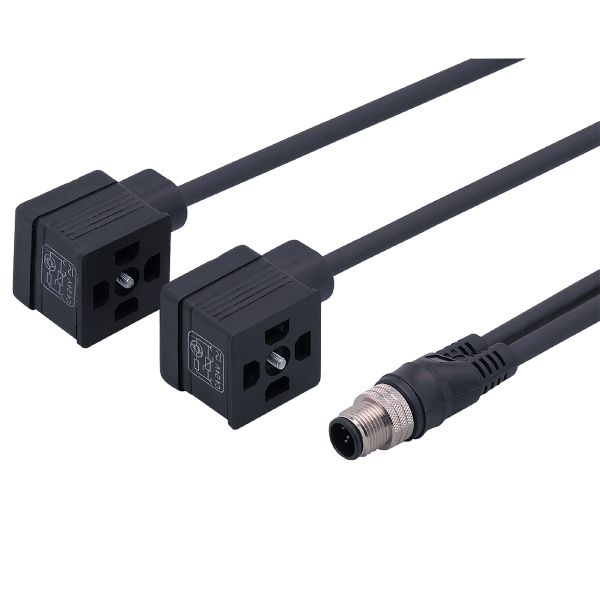

E12068 - ecomat400-YVDAA042--S0003A03STGH050MSS
Brand: IFM Electronic
Code: E12068
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Clearly visible LED
- Robust rectangular connector
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Overvoltage protection | yes; (VDR) |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 350.2 |
|---|---|
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated |
Electrical connection
| Connection | Cable: 3 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm ) |
|---|
Electrical connection - socket
| Connector: 2 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12068-00 — 07.05.2010 —
