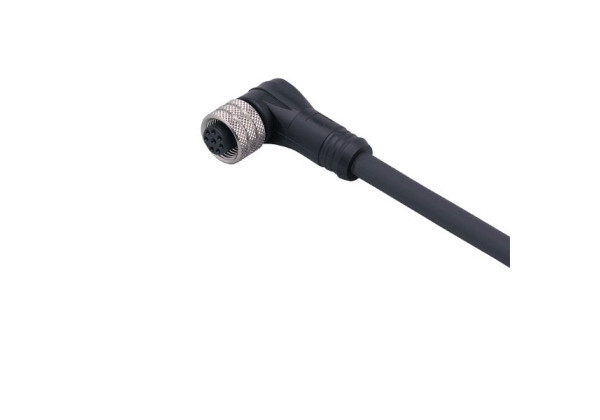

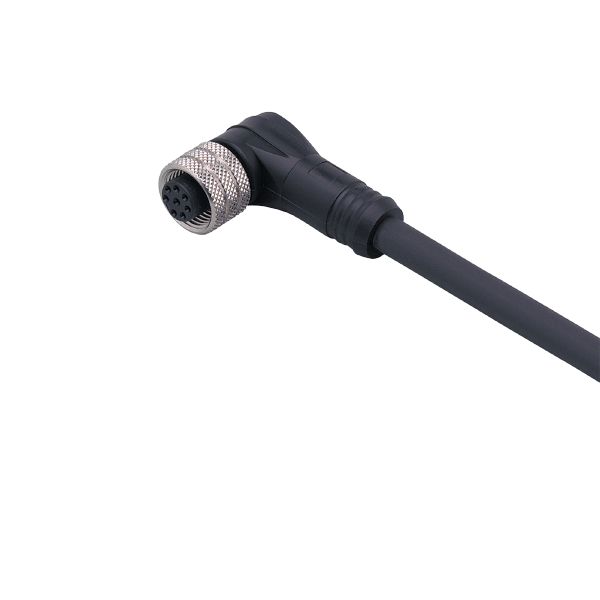

E12168 Connecting cable with socket ADOAH080MSS0005B08
Brand: IFM Electronic
Code: E12168
- 8-pole connection
- High protection rating for the requirements of harsh industrial environments
- Reliable transmission of the sensor signals
- Wide operating temperature range
- Angled type for use where space is restricted
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 284 |
|---|---|
| Dimensions [mm] | 28 x 15 x 38 |
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PUR, black; 8 x 0.25 mm² (14 x Ø 0.15 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 1...1.5 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12168-00 — 03.05.2010 —
