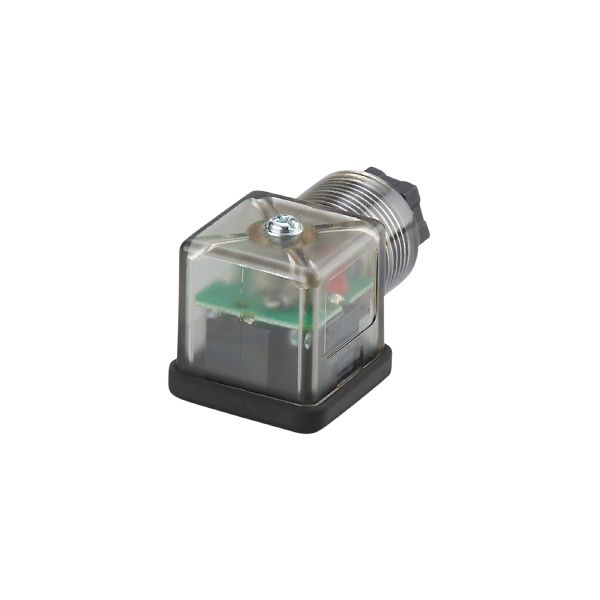

E12224 - ecomat400-SVDAA031PLSFKPG
Brand: IFM Electronic
Code: E12224
- Reliable connection of valves in the field
- With integrated protective circuitry
- Wide operating temperature range
- Clearly visible LED
- Angled type for use where space is restricted
Application
| Special feature | Free from silicone |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 24 DC |
|---|---|
| Max. current load total [A] | 16 |
Operating conditions
| Ambient temperature [°C] | -40...125 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 29.4 |
|---|---|
| Materials | housing: PA transparent; end cap: PA black; Sealing: NBR black |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals: 4 x...1.5 mm²; Cable sheath: Ø 6...8 mm |
Electrical connection - socket
| Connection | Connector: 1 x valve type A DIN, angled |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12224-00 — 31.05.2010 —
