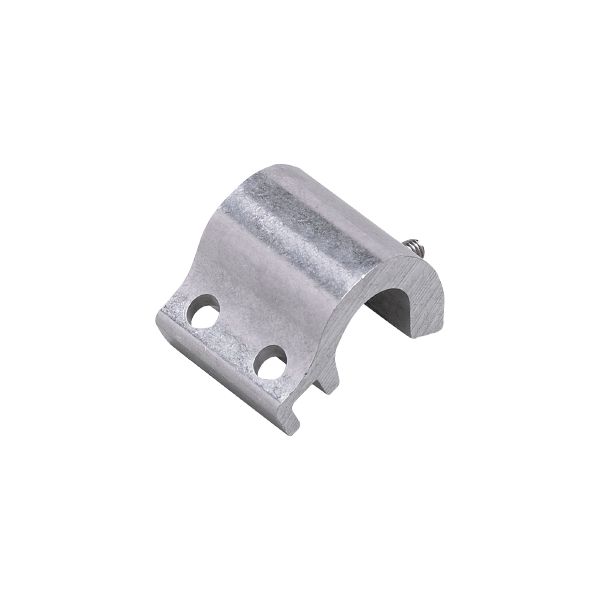

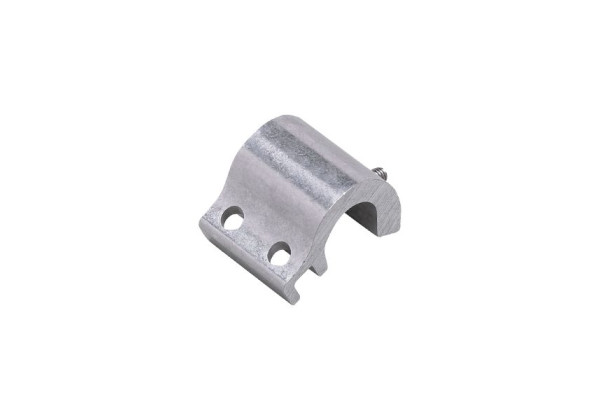

E12232 - efector100-ADAPT TIE ROD/PROFILE
Brand: IFM Electronic
Code: E12232
- For the adaptation of cylinder sensors to tie rod cylinders
- Low height due to a perfectly adapted mechanical solution
- Protected position of the sensor in the adapter
- Easy, quick and secure mounting
- Robust metal design for use in harsh industrial environments
Application
| Design | for types MKT, for types MKT |
|---|
Mechanical data
| Weight [g] | 20.2 |
|---|---|
| Materials | Adapter: aluminium; screw: stainless steel |
| Tightening torque [Nm] | 0.5 |
| Clamping range [mm] | 9...13.5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12232-00 — 19.07.2010 —
