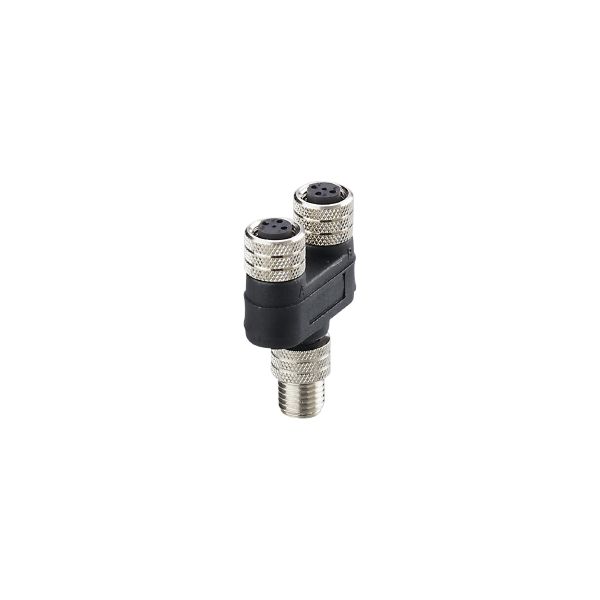

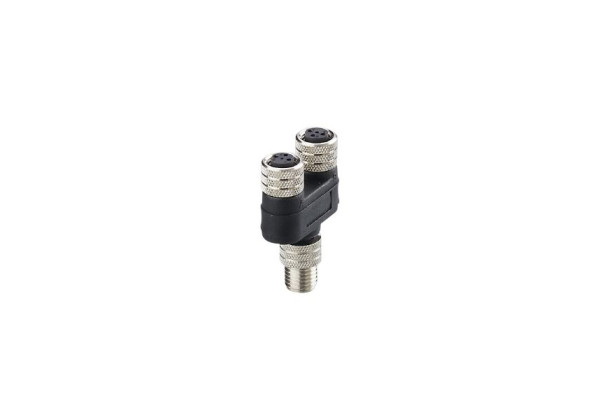

E12269 - ecomat400-ZDO2F030MSS0000-00STGF040MSS
Brand: IFM Electronic
Code: E12269
- For use in applications with many inputs and outputs where space is restricted
- High protection rating for the requirements of harsh industrial environments
- Gold-plated contacts for reliable electrical connections
- Wide operating temperature range
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 30 AC/DC |
|---|---|
| Protection class | III |
| Max. current load per module/slot [A] | 3 |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 15.7 |
|---|---|
| Dimensions [mm] | 11 x 27 x 38 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 2 |
| Connector type | M8 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M8; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
Electrical connection - socket
| Connector: 2 x M8; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12269-00 — 25.03.2011 —
