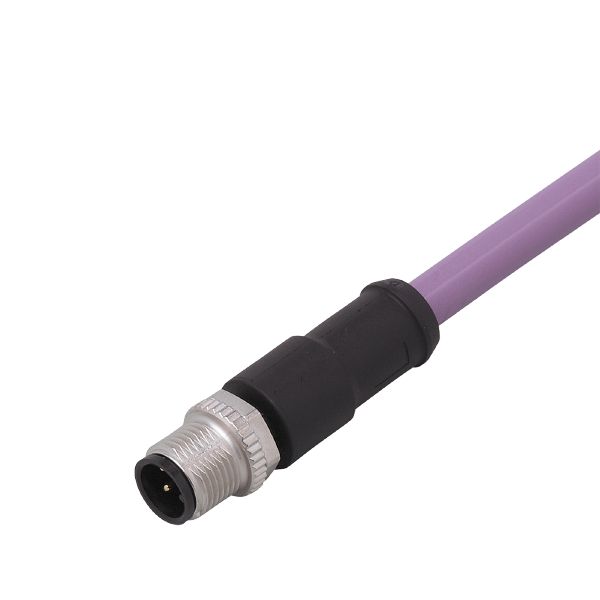

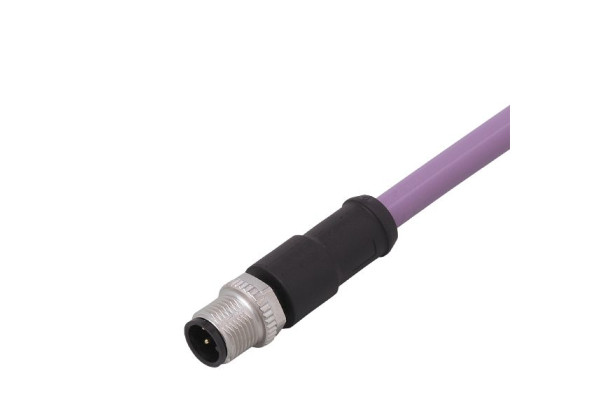

E12284 - ecomat400-ASTGH050MSA0003H02

Code: E12284

Reliable connection technology for CAN bus participants
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Suited for use in mobile machines

Application

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Application	CAN bus

Electrical data

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-40...80
Protection	IP 68

Mechanical data

Weight [g]

235.8

Dimensions [mm]

14.5 x 14.5 x 48.5

Materials

PUR

Moulded-body material

PUR

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
bending radius for fixed installation	min. 5 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 1 Mio.

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 3 m, PUR, Halogen-free, lilac, Ø 6.8 mm, shielded; 2 x 0.25 mm² (19 x Ø 0.13 mm ) + 2 x 0.34 mm² (19 x Ø 0.16 mm ) + 1 x 0.34 mm² (19 x Ø 0.16 mm )

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12284-00 — 06.11.2017 —
