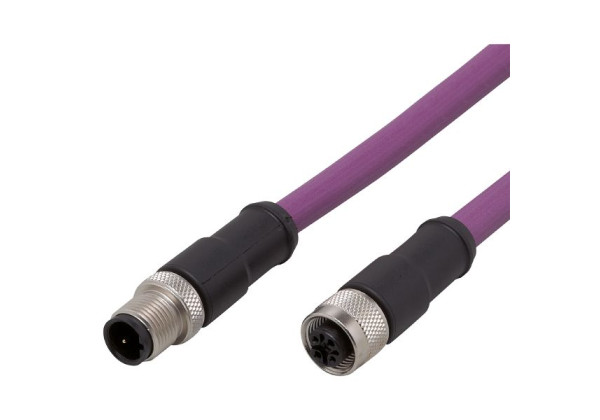

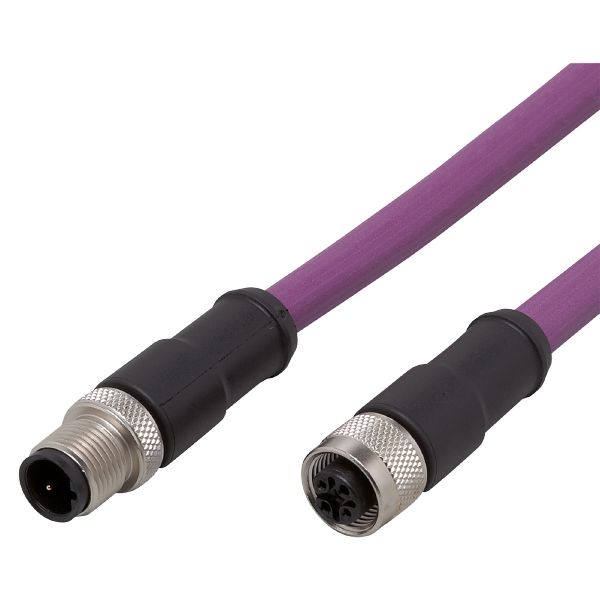

E12316 - ecomat400-VDOGH050MSS0002C02STG020MSS

Code: E12316

High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Gold-plated contacts for reliable electrical connections

Application

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability

Electrical data

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4; (...40 °C)

Operating conditions

Ambient temperature [°C]	-40...70
Ambient temperature (moving) [°C]	-20...50
Protection	IP 67

Mechanical data

Weight [g]

160.6

Dimensions [mm]

14.5 x 14.5 x 48.5

Materials

PUR

Moulded-body material

PUR

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 7.5 x cable diameter
bending radius for fixed installation	min. 10 x cable diameter
travel speed	max. 5.5 m/s for a horizontal travel length of 5m and max. acceleration of 10 m/s²
bending cycles	> 5 Mio.
max. permissible tensile strength	50 N/mm² static
	20 N/mm² dynamic

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: B; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm; Shielded connection cable: screen connected

Electrical connection

Connection	Cable: 2 m, PUR, Halogen-free, lilac, Ø 8 mm, shielded; 2 x 0.25 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: B; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm; Shielded connection cable: screen connected

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12316-00 — 13.01.2012 —
