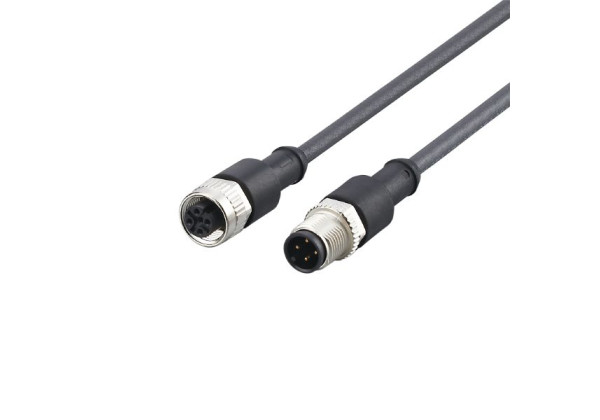

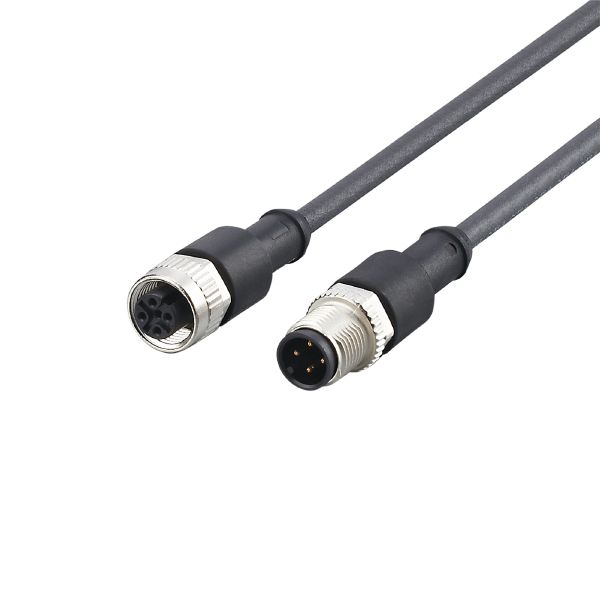

E12332 - ecomat400-VDOGH040MSS0015C04STGH040MSS
Brand: IFM Electronic
Code: E12332
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Good electromagnetic compatibility thanks to shielded cable
- Permanent, reliable sealing even when mounted without tools
- Gold-plated contacts for reliable electrical connections
Application
| Special feature | Free from silicone; Gold-plated contacts; Screened cable |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 612.5 |
|---|---|
| Dimensions [mm] | 14.5 x 14.5 x 48.5 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
Electrical connection
| Connection | Cable: 15 m, PUR, black, Ø 5 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12332-00 — 29.05.2012 —
