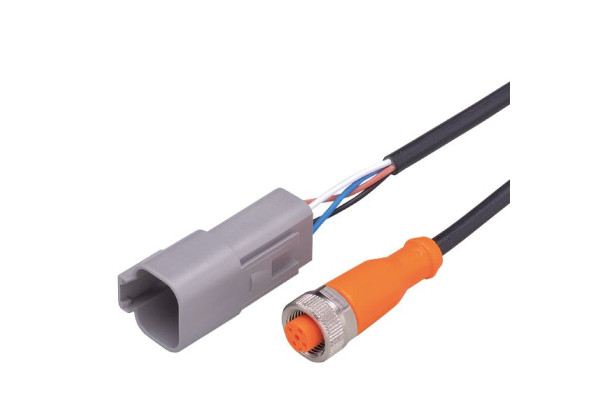

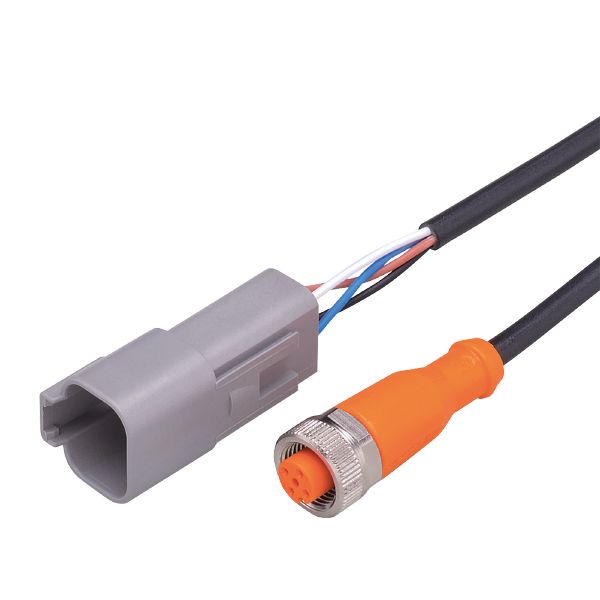

E12336 - ecomat400-VDOGH040MSS0004H04STGX040--S
Brand: IFM Electronic
Code: E12336
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Good electromagnetic compatibility thanks to shielded cable
- Gold-plated contacts for reliable electrical connections
- DEUTSCH connector for the fast and easy connection to the on-board system
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 179.5 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Materials | socket housing: TPU orange; Sealing: FKM | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x DEUTSCH connector, straight; Contacts: nickel-plated |
Electrical connection
| Connection | Cable: 4 m, PUR, Halogen-free, black, Ø 5.1 mm; 4 x 0.50 mm² (64 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12336-00 — 05.11.2020 —
