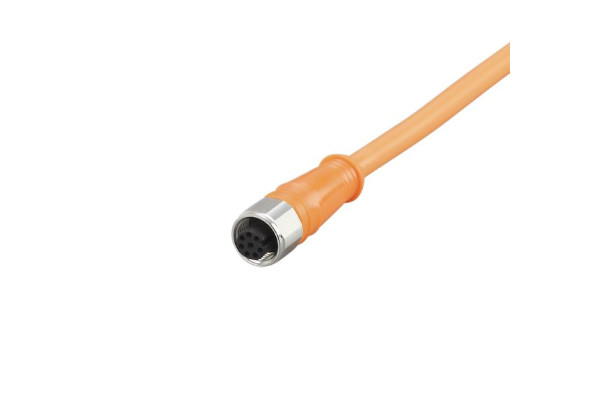

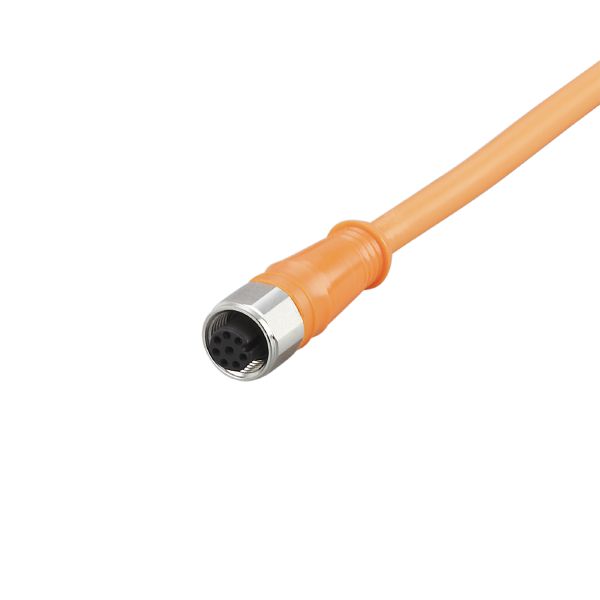

E12344 - ecomat400-ADOGH080VAS0025E08
Brand: IFM Electronic
Code: E12344
- 8-pole connection
- High protection rating for the requirements of the food and beverage industry
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -25...100 |
|---|---|
| Protection | IP 68; IP 69K |
Mechanical data
| Weight [g] | 1555.5 |
|---|---|
| Dimensions [mm] | 15 x 15 x 46 |
| Materials | PVC |
| Moulded-body material | PVC |
| Material nut | stainless steel (1.4404 / 316L) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 25 m, PVC, orange, Ø 5.9 mm; 8 x 0.25 mm² (32 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PVC; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12344-00 — 26.09.2012 —
