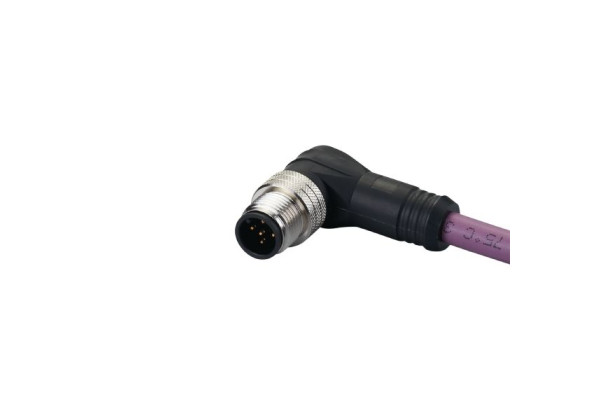

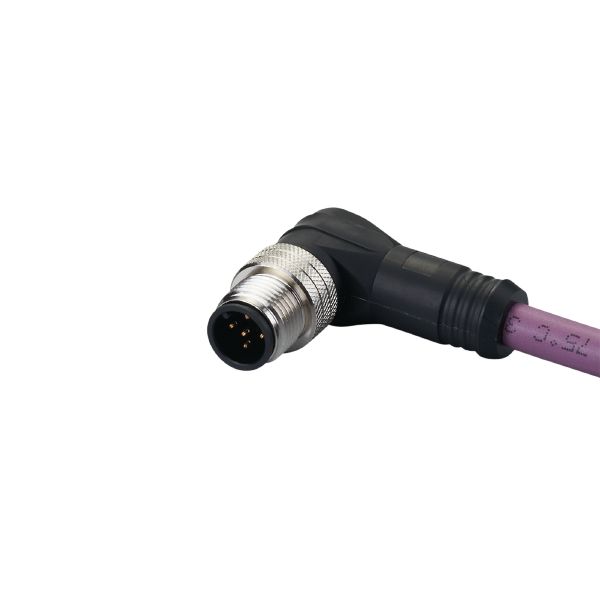

E12347 - ecomat400-ASTGA050MSS0010C04
Brand: IFM Electronic
Code: E12347
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Good electromagnetic compatibility thanks to shielded cable
- Permanent, reliable sealing even when mounted without tools
- Gold-plated contacts for reliable electrical connections
Application
| Special feature | Free from silicone; Gold-plated contacts; Screened cable |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 314 |
|---|---|
| Dimensions [mm] | 38 x 15 x 31 |
| Materials | housing: TPU black |
| Material nut | brass, nickel-plated |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable: 10 m, PVC, lilac, Ø 6.7 mm, shielded; 2 x 0.34 mm² / AWG 22 + 2 x 0.25 mm² / AWG 24 |
Electrical connection - plug
| Connection | Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen not connected |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12347-01 — 01.09.2016 —
