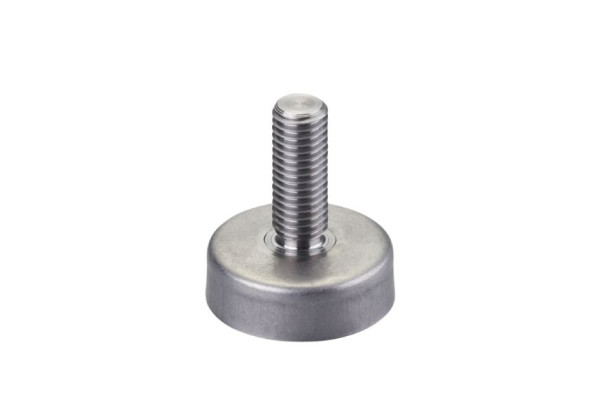

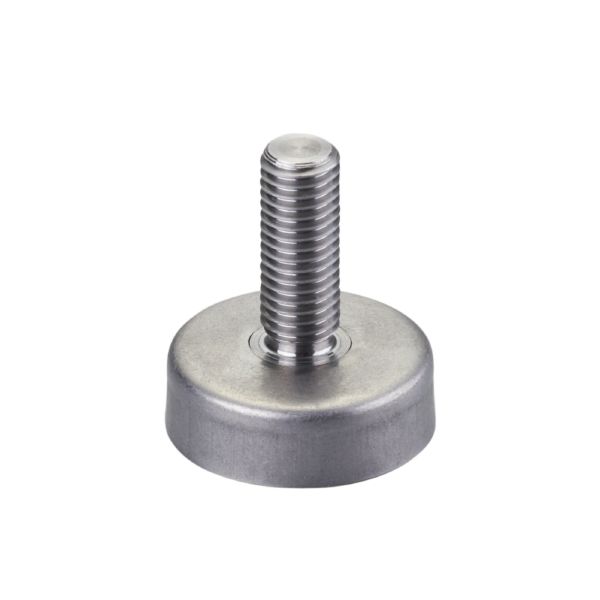

E12350 - efector100-MAGNET M4.1/M12 STAINLESS
Brand: IFM Electronic
Code: E12350
- For ensuring a long sensing range
- For use in combination with magnetic sensors
- Hidden installation behind aluminium or stainless steel is possible
- Wide operating temperature range
Operating conditions
| Ambient temperature [°C] | -25...250 |
|---|
Mechanical data
| Weight [g] | 101 |
|---|---|
| Dimensions [mm] | Ø 40 / L = 13 |
| Materials | hard ferrite HF 24/23; stainless steel (1.4571/316Ti ) |
| Magnetic field strength [mT] | 80 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12350-01 — 10.01.2020 —
