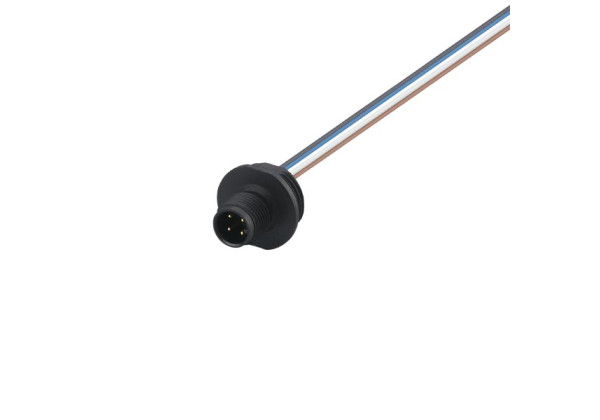

E12358 - ecomat400-ESTGH040PLS00,5E04 (PG11)
Brand: IFM Electronic
Code: E12358
- User-friendly equipment of distributors and housings with connections for connectors
- Easy and quick installation into the container wall
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | < 250 AC/DC |
|---|---|
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 9.66 |
|---|---|
| Mounting thread | PG 11 |
| Materials | PA 6.6 |
| Moulded-body material | PA 6.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.5 m, PVC; 4 x 0.25 mm² |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6 |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12358-00 — 02.04.2013 —
