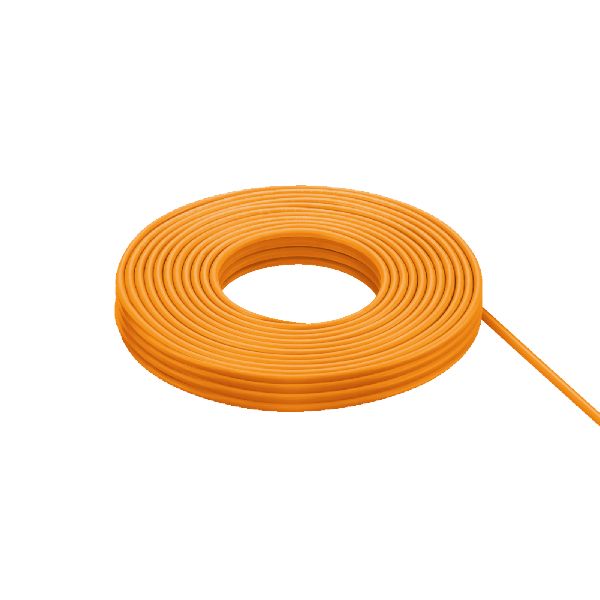

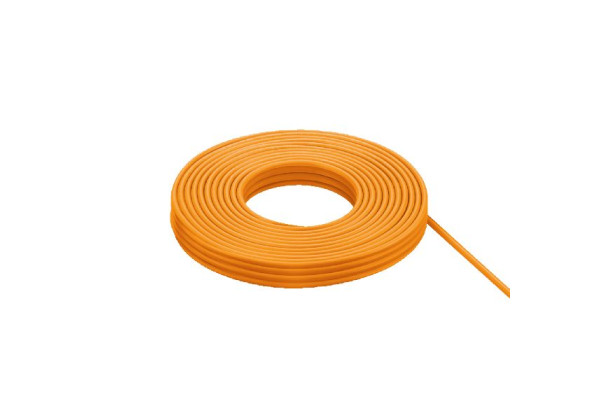

E12359 - ecomat400-CABLE/100M/PUR/4X0,34/OR
Brand: IFM Electronic
Code: E12359
- Drag chain suitability with more than 2 million bending cycles
- Weld-slag resistant PUR cable with drag chain suitability
- Wide operating temperature range
Application
| Special feature | Halogen-free; Drag chain suitability |
|---|
Operating conditions
| Ambient temperature [°C] | -40...90 |
|---|---|
| Ambient temperature (moving) [°C] | -25...90 |
Mechanical data
| Weight [g] | 2990 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 100 m, PUR, Halogen-free, orange, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12359-00 — 13.04.2023 —
