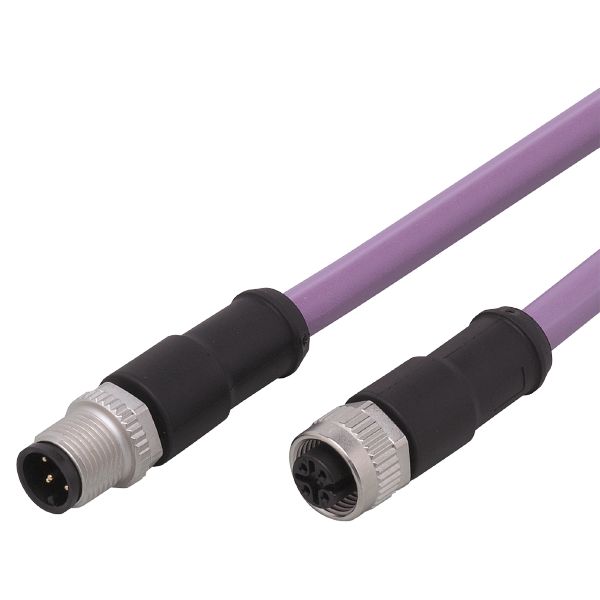

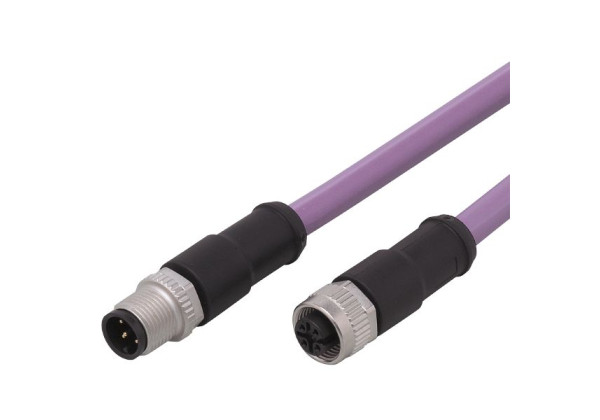

E12363 - ecomat400-VDOGH050MSA0015C05STGH050MSS

Code: E12363

Reliable connection technology for CAN bus participants
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Gold-plated contacts for reliable electrical connections

Application

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Application	CAN bus

Electrical data

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-40...80
Protection	IP 68

Mechanical data

Weight [g]

1085

Dimensions [mm]

14.5 x 14.5 x 48.5

Materials

PUR

Moulded-body material

PUR

Material nut

diecast zinc, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
bending radius for fixed installation	min. 5 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 1 Mio.

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm

Electrical connection

Connection	Cable: 15 m, PUR, Halogen-free, lilac, Ø 7.2 mm, shielded; twisted; 2 (RD) / 3 (BK): 2 x 0.25 mm² (19 x Ø 0.13 mm ) / twisted + 4 (WH) / 5 (BU): 2 x 0.34 mm² (19 x Ø 0.16 mm ) / twisted

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12363-00 — 29.05.2013 —
