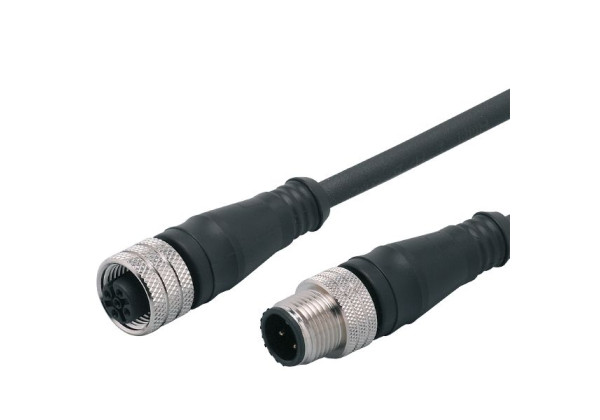

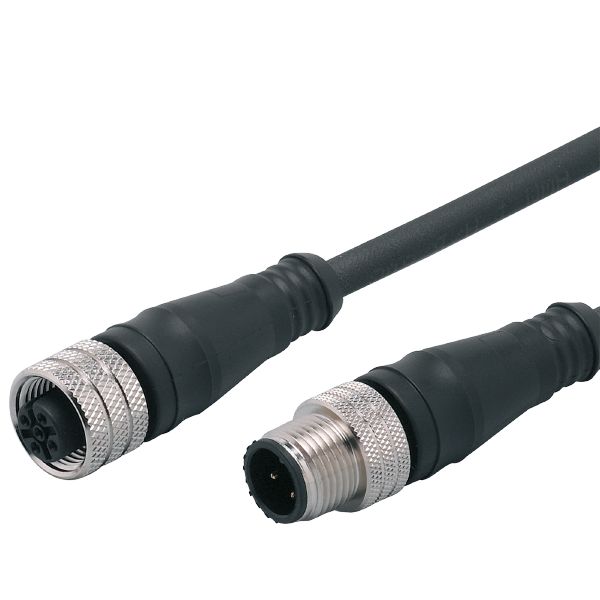

E12383 - ecomat400-VDOGH080MSS0010K08STGH080MSS
Brand: IFM Electronic
Code: E12383
Application
| Special feature | Screened cable |
|---|
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 571 |
|---|---|
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected |
Electrical connection
| Connection | Cable: 10 m, PUR, black, Ø 6.8 mm, shielded; 8 x 0.25 mm² |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12383-01 — 17.07.2023 —
