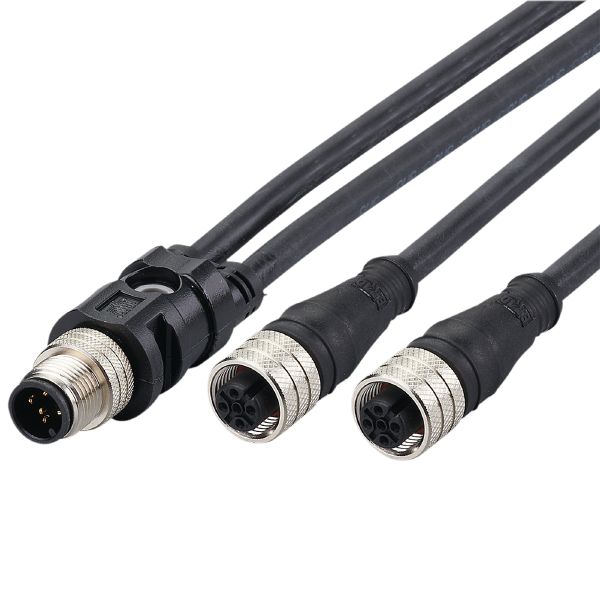

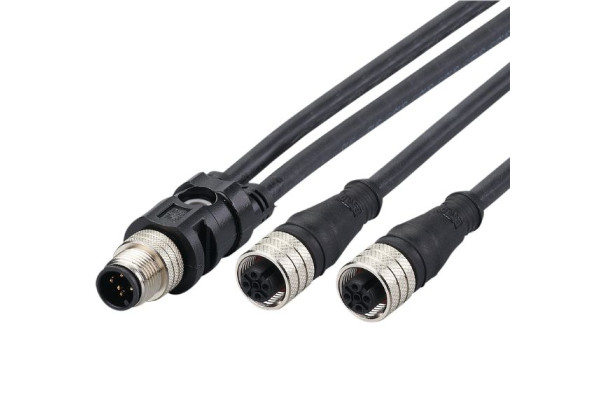

E12405 - ecomat400-YDOAH050MSS0002H04STGH050MSS
Brand: IFM Electronic
Code: E12405
- For safe electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 65 |
|---|---|
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.25 m, PUR, Halogen-free, black, Ø 5.0 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|---|
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated |
Electrical connection - socket
| Cable: 0.25 m, PUR, Halogen-free, black, Ø 5.0 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm ) | |
| Connector: 2 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12405-01 — 15.12.2022 —
