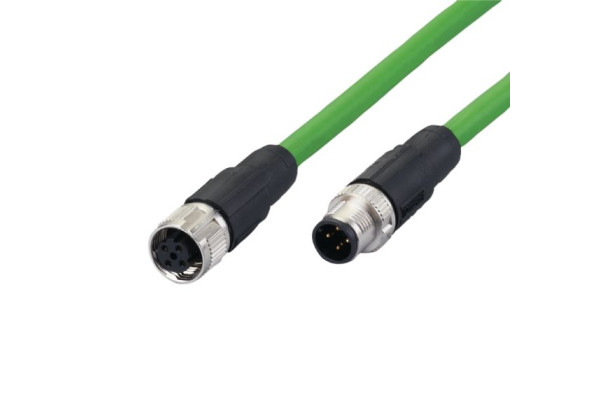

E12424 - ecomat400-VDOGH040ZDA0020L04STGH040ZDS
Brand: IFM Electronic
Code: E12424
- For connection to the parameter setting interface of the sensor
- Gold-plated contacts for reliable signal transmission
- High protection rating for the requirements of harsh industrial environments
- Good electromagnetic compatibility thanks to shielded cable
Application
| Special feature | Gold-plated contacts; Screened cable |
|---|---|
| Design | Ethernet cable, D-coded |
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -20...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 1342 |
|---|---|
| Dimensions [mm] | 15 x 15 x 47.3 |
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|

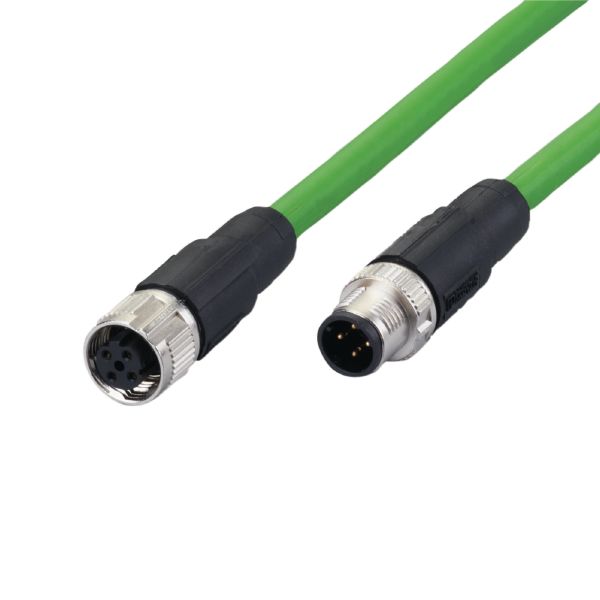

Electrical connection - plug
| Connector: 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected |
Electrical connection
| Connection | Cable: 20 m, PVC, green, shielded; 4 x 0.34 mm² |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Shielded connection cable: screen connected |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12424-01 — 05.11.2020 —
