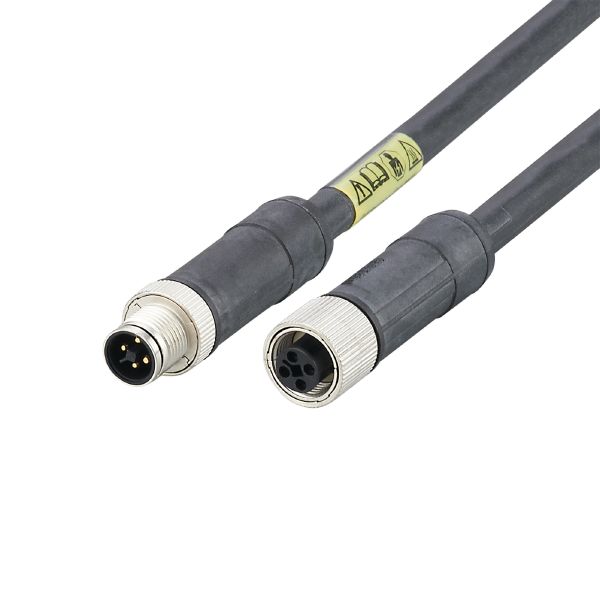

E12425 - ecomat400-VDOGH040ZDS00,5H04STGH040ZDS

Code: E12425

High power transfer thanks to high current rating
Gold-plated contacts for reliable signal transmission
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Protection against wrong plug-in by means of special coding

Application

Special feature	Gold-plated contacts; Drag chain suitability
Design	power cable, T-coded

Electrical data

Operating voltage [V]	< 60 DC
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Mechanical data

Weight [g]

105.4

Dimensions [mm]

15.4 x 15.4 x 54.8

Materials

PUR

Moulded-body material

PUR

Material nut

diecast zinc, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
bending radius for fixed installation	min. 5 x cable diameter
travel speed	max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s²
bending cycles	> 4 Mio.

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: T; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated

Electrical connection

Connection	Cable: 0.5 m, PUR, black; 4 x 1.5 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: T; Moulded body: PUR
