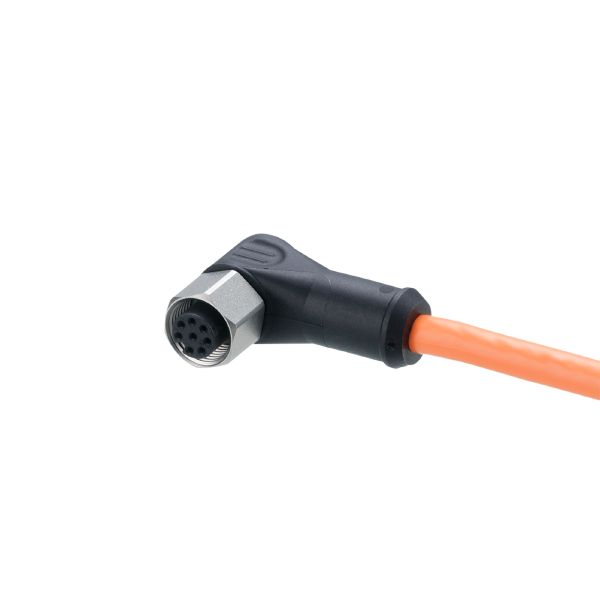

E12456 - ecomat400-ADOAH080VAS0003G08
Brand: IFM Electronic
Code: E12456
- High protection rating for the requirements of the food and beverage industry
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range
- Good electromagnetic compatibility thanks to shielded cable
- Angled type for use where space is restricted
Application
| Special feature | Screened cable |
|---|
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Protection class | III |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 440 |
|---|---|
| Dimensions [mm] | 26.5 x 15 x 38.5 |
| Materials | PVC; PUR |
| Moulded-body material | PUR |
| Material nut | stainless steel |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 3 m, PVC, orange, Ø 6.6 mm, shielded; 8 x 0.25 mm² (14 x Ø 0.15 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: PUR, black; Locking: stainless steel; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12456-00 — 14.07.2015 —
