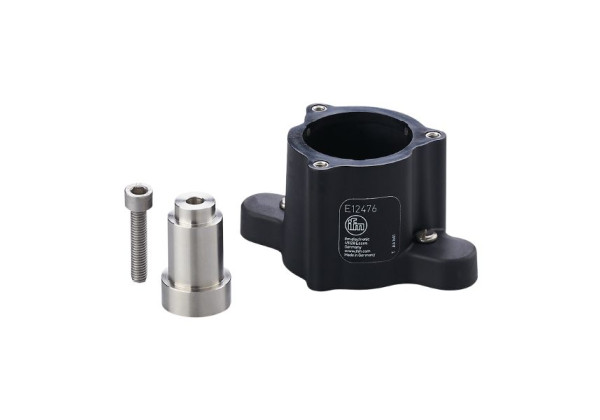

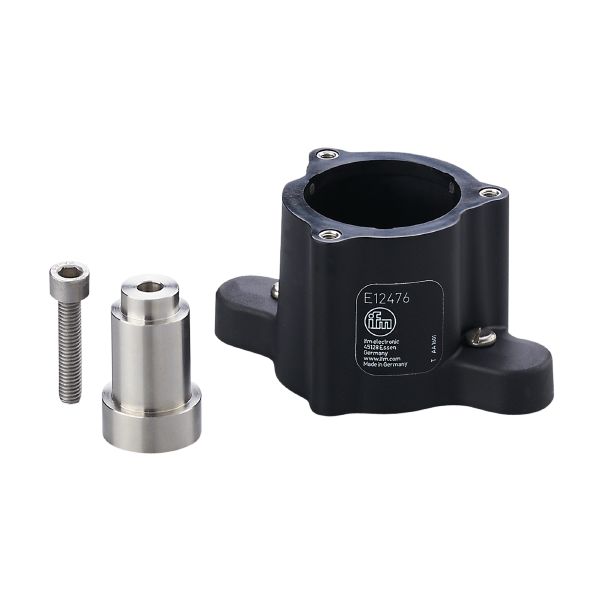

E12476 - VALVIS ADAPTER 19
Brand: IFM Electronic
Code: E12476
- For the adaptation of valve sensors to manufacturer-specific rising stem valves
- Required mounting accessories supplied with the unit
- Robust design for use in harsh industrial environments
- Easy, quick and inexpensive fixing
Application
| Design | for Alfa Laval valves Typ LKLA-T (Butterfly Valves) |
|---|
Mechanical data
| Weight [g] | 163.5 |
|---|---|
| Materials | Adapter: PA 6; Clamping device: stainless steel (1.4301 / 304); Target: stainless steel (1.4404 / 316L); screw: stainless steel (1.4301 / 304); Sealing: EPDM |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12476-00 — 26.01.2016 —
