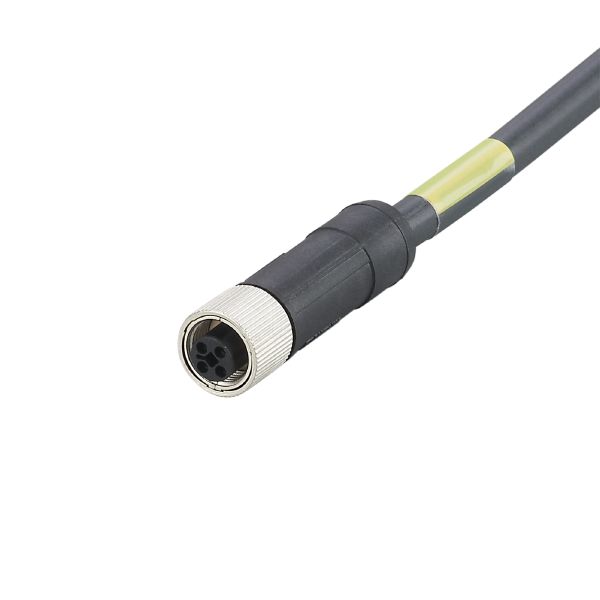

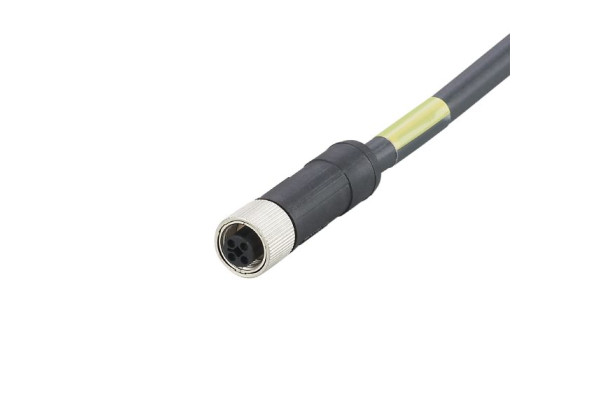

E12496 - ADOGD040ZDS0010H04
Brand: IFM Electronic
Code: E12496
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- High power transfer thanks to high current rating
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | power cable, T-coded |
Electrical data
| Operating voltage [V] | < 60 DC |
|---|---|
| Max. current load total [A] | 12 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 1093.5 |
|---|---|
| Dimensions [mm] | 15.4 x 15.4 x 52.8 |
| Materials | PP |
| Moulded-body material | TPU |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PUR, black, Ø 8 mm; 4 x 1.5 mm² |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: T; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12496-01 — 15.02.2022 —
