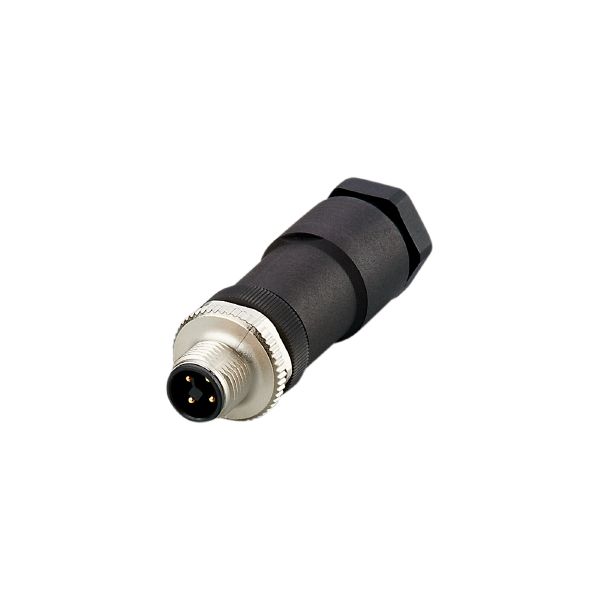

E12500 - SSTGH040ZDSFKG

Code: E12500

Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Safe cable connection with screw terminals
Robust metal version

Application

Special feature	Free from silicone; Gold-plated contacts
Design	power cable, T-coded
Free from silicone	yes

Electrical data

Operating voltage [V]	< 60 DC
Max. current load total [A]	12; (when using conductors with 1.5 mm²)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Mechanical data

Weight [g]	25.7
Dimensions [mm]	20 x 20 x 65.5
Moulded-body material	PA
Material nut	diecast zinc
Sealing material	NBR

Remarks

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 0.75...1.5 mm²; Cable sheath: Ø 8...10 mm

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: T; Moulded body: PA; Locking: diecast zinc; Sealing: NBR; Contacts: gold-plated; Tightening torque: 0.4 Nm
