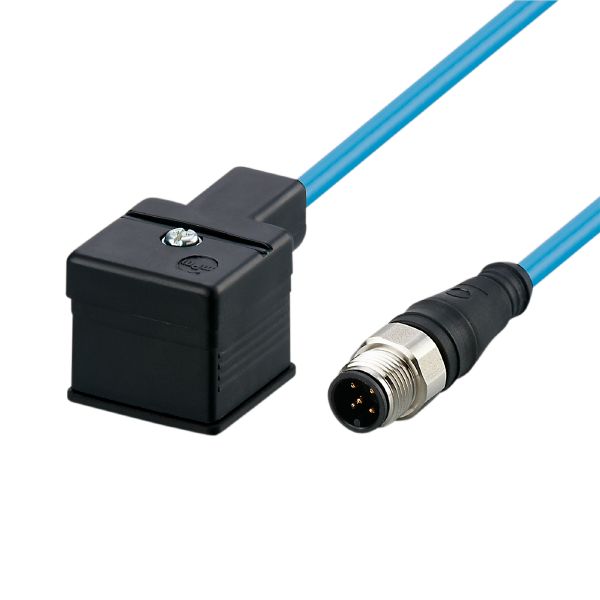

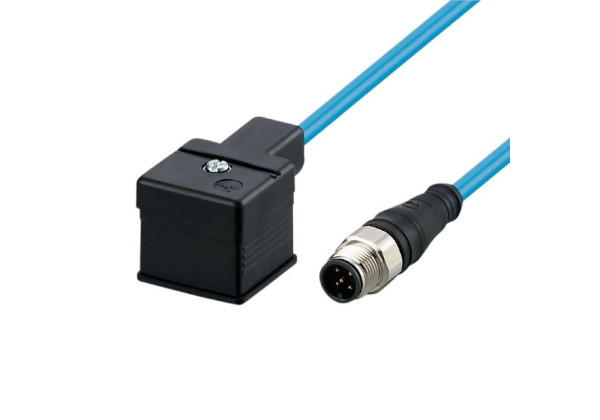

E12508 - VVDAA040--N00,3E02STGH020VAN
Brand: IFM Electronic
Code: E12508
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- For applications in hazardous areas
- Robust rectangular connector
Application
| Application | NAMUR |
|---|
Electrical data
| Operating voltage [V] | < 15 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 52 |
|---|---|
| Materials | TPU; PUR |
| Moulded-body material | TPU / PUR |
| Material nut | stainless steel (1.4404 / 316L) |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU / PUR; Locking: stainless steel (1.4404 / 316L) |
Electrical connection
| Connection | Cable: 0.3 m, PVC, blue, Ø 5.1 mm; 2 x 0.5 mm² |
|---|
Electrical connection - socket
| Connector: 1 x valve type A DIN, angled; Moulded body: TPU / PUR; Locking: stainless steel (1.4404 / 316L) |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12508-01 — 27.09.2016 —
