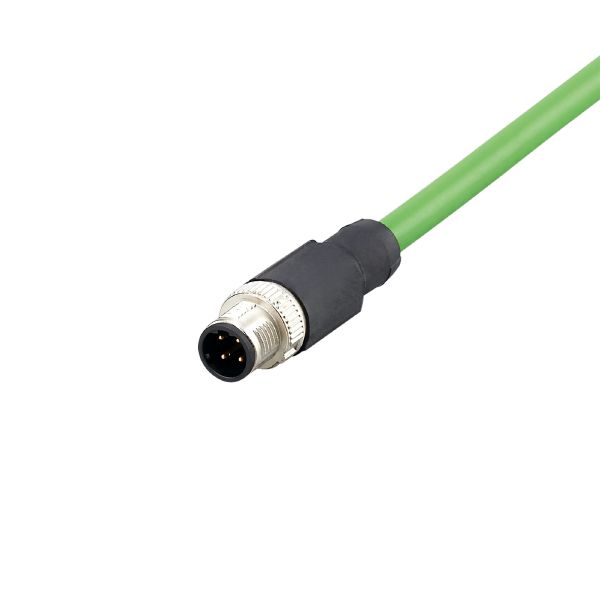

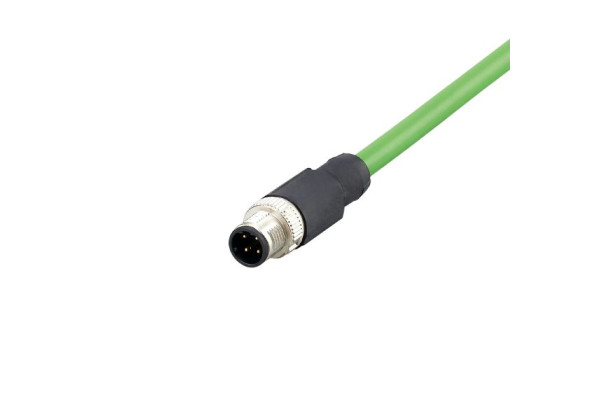

E12511 - ASTGH040ZDS0005H04

Code: E12511

Reliable signal transmission for devices with Ethernet interface
For quick and easy parameter setting and set-up
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
Good electromagnetic compatibility thanks to shielded cable

Application

Special feature	Gold-plated contacts
Design	Ethernet cable, D-coded

Electrical data

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-40...70
Protection	IP 67

Mechanical data

Weight [g]	349.2
Dimensions [mm]	15 x 15 x 47.3
Materials	TPU
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PVC, green, Ø 6.5 mm; 4 x 0.34 mm²

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12511-00 — 05.11.2020 —
