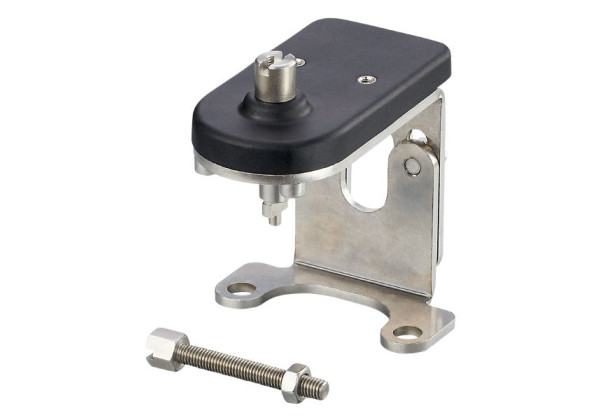

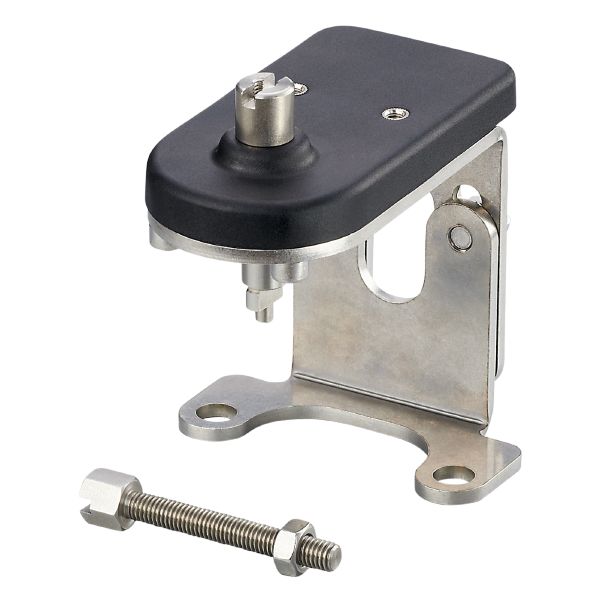

E12524 - MOUNTING KIT FOR MANUAL VALVES F10/M8
Brand: IFM Electronic
Code: E12524
- For the reliable limit position feedback of manual valves and ball valves
- Suitable for a large variety of ISO top flange fittings
- Easy mounting and safe fixing
- For applications in hazardous areas
- Robust stainless steel design for use in harsh industrial environments
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|
Mechanical data
| Weight [g] | 602.5 |
|---|---|
| Top flange diameter [mm] | 102 |
| ISO top flange type | F10 |
| Shaft extension | M8 |
| Materials | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12524-00 — 02.08.2016 —
