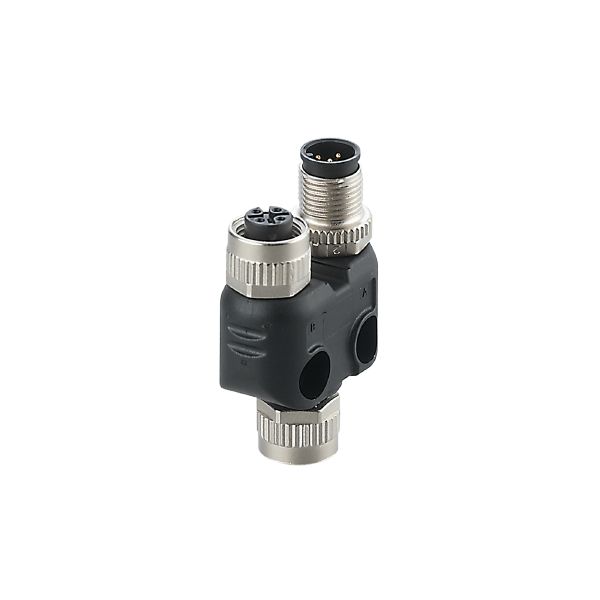

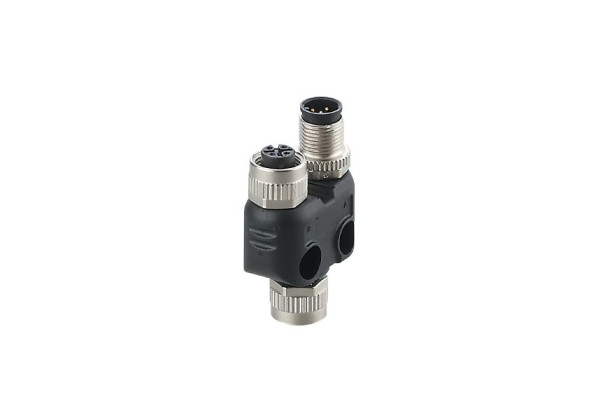

E12529 - ZDO2H050ZDS0000-00STGH050ZDS
Brand: IFM Electronic
Code: E12529
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 37.1 |
|---|---|
| Materials | PUR black |
| Moulded-body material | PUR, Halogen-free |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12; coding: A; Moulded body: PUR, Halogen-free; Contacts: gold-plated |
Electrical connection - socket
| Connection | Connector: 2 x M12; coding: A; Moulded body: PUR, Halogen-free; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12529-00 — 13.07.2017 —
