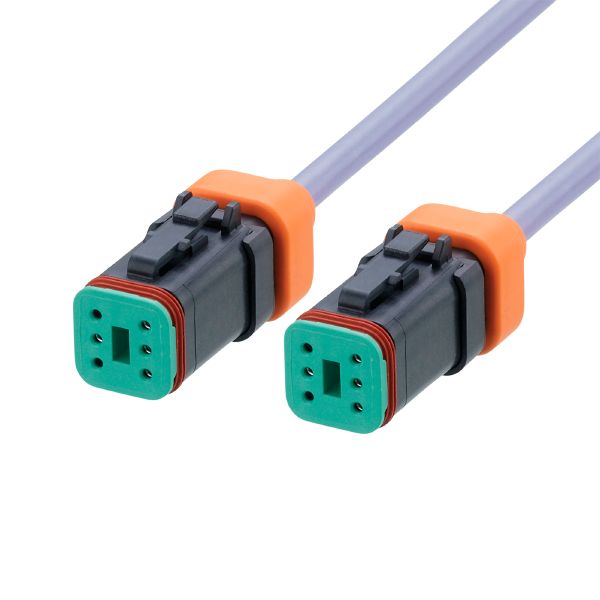

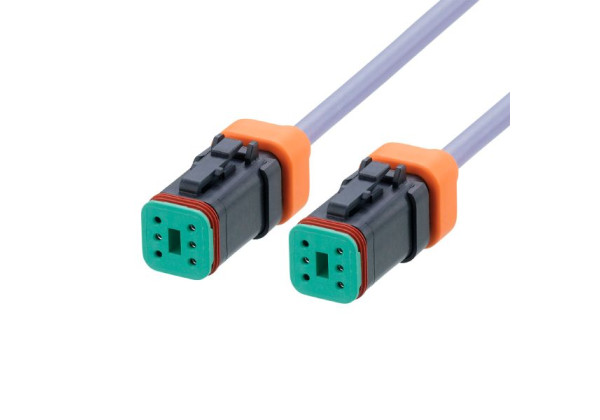

E12555 - VDOGS040PLS00,5H04DOGS040PLS
Brand: IFM Electronic
Code: E12555
- For use in mobile machines and vehicles
- Wide operating temperature range
- DEUTSCH connector for the fast and easy connection to the on-board system
- High protection rating for the requirements of harsh industrial environments
- PUR cable with good drag chain suitability
Application
| Special feature | Free from silicone; Halogen-free |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 12...24 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Ambient temperature (moving) [°C] | -30...70 |
| Protection | IP 67; (mating connector plugged in) |
Mechanical data
| Weight [g] | 81.9 |
|---|---|
| Moulded-body material | PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.5 m, PUR, Halogen-free, lilac, Ø 6.4 mm; twisted; 2 x 0.50 mm² (2 x 0.50 mm ) + 2 x 1 mm² (52 x 0.15 mm ) |
Electrical connection - socket
| Connection | Connector: 2 x DEUTSCH connector, straight; Moulded body: PA; Contacts: nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12555-00 — 05.11.2020 —
