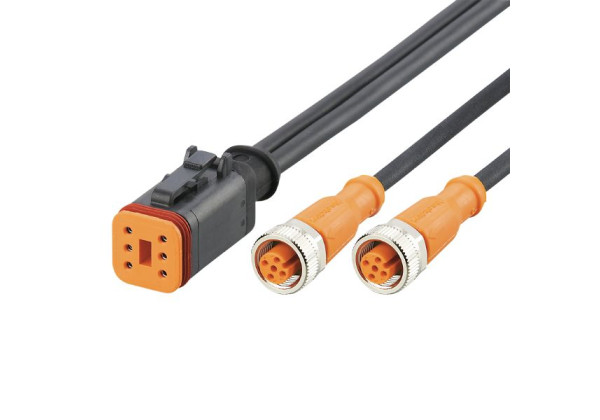

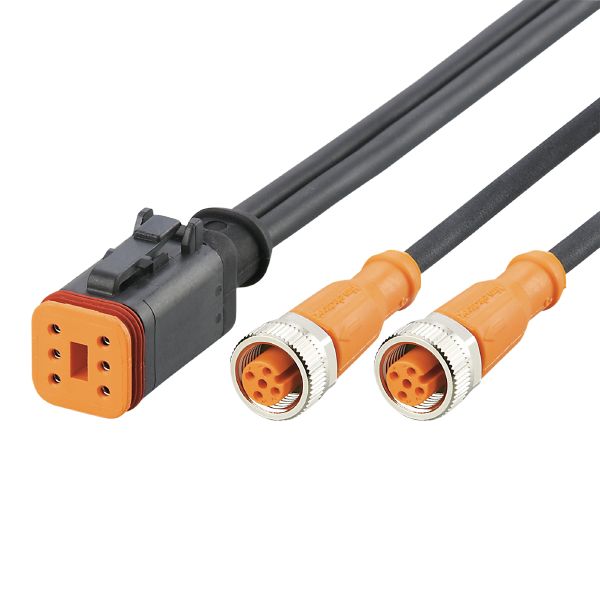

E12561 - YDOGS060PLS0001H03DOGH030MSS

Code: E12561

For use in mobile machines and vehicles
Wide operating temperature range
DEUTSCH connector for the fast and easy connection to the on-board system
High protection rating for the requirements of harsh industrial environments
PUR cable with good drag chain suitability

Application

Special feature	Free from silicone; Halogen-free; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	8...32 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-40...80
Ambient temperature (moving) [°C]	-20...80
Protection	IP 67; (mating connector plugged in)

Mechanical data

Weight [g]

135

Materials

PA; socket: TPU orange; Sealing: FKM

Material nut

brass, nickel-plated

Number of ports splitter box

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection - DEUTSCH connector

Connection	Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 6 x 0.5 mm² (28 x Ø 0.15 mm )
Connection	Connector: 1 x DEUTSCH connector, straight

Electrical connection - socket

	Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.5 mm² (28 x Ø 0.15 mm )
	Connector: 2 x M12, straight; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm
