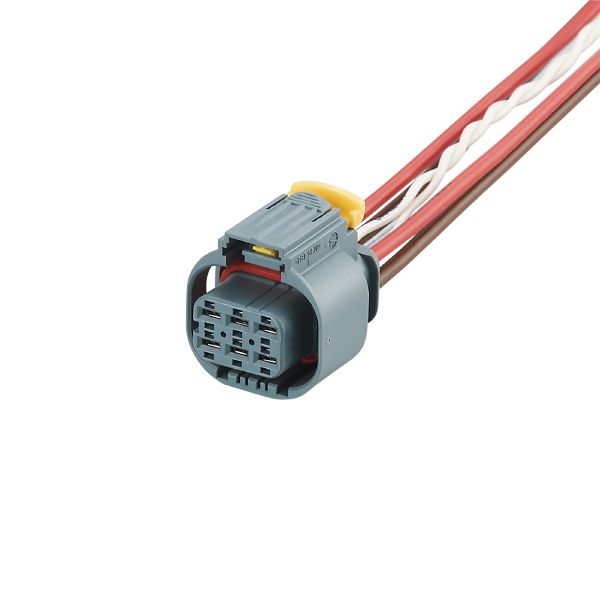

E12566 - ADOGX060--A005E06
Brand: IFM Electronic
Code: E12566
Electrical data
| Operating voltage [V] | 12...24 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...100 |
|---|---|
| Ambient temperature (moving) [°C] | -40...100 |
Mechanical data
| Weight [g] | 576.5 |
|---|---|
| Materials | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PVC; 4 x 2.5 mm² + 2 x 0.5 mm² |
Electrical connection - socket
| Connection | Connector: 1 x AMP connector, straight; Contacts: nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12566-00 — 05.11.2020 —
