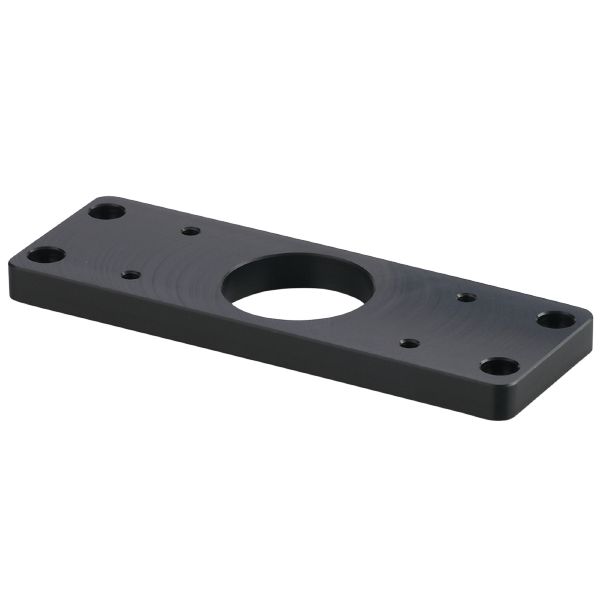

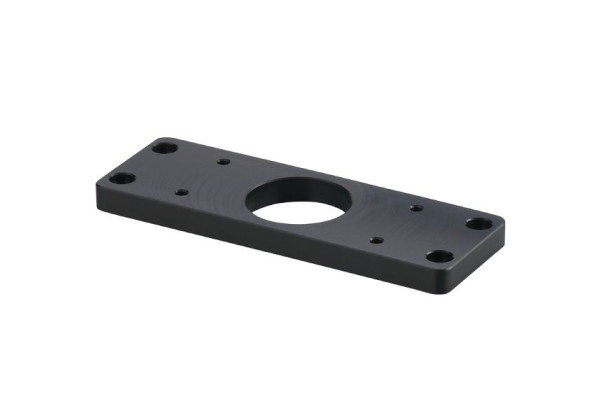

E12573 Mounting plate ADAPTER 130X30X10
Brand: IFM Electronic
Code: E12573
Application
| Design | for types MVQ |
|---|
Mechanical data
| Weight [g] | 99.9 |
|---|---|
| Dimensions [mm] | 10 x 145 x 50 |
| Hole spacing for mounting bracket | 130 x 30 mm |
| Shaft height for valve drive | 30 mm |
| Suitable for shaft diameters [mm] | < 38 |
| Materials | POM black |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12573-00 —
